Detailed Product Description

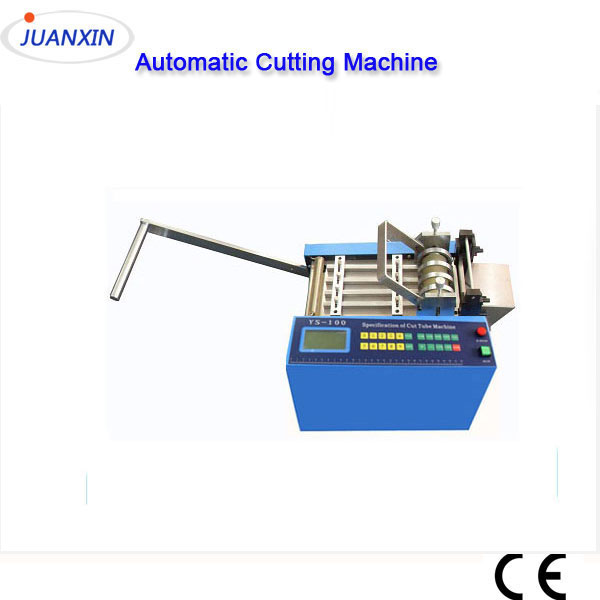

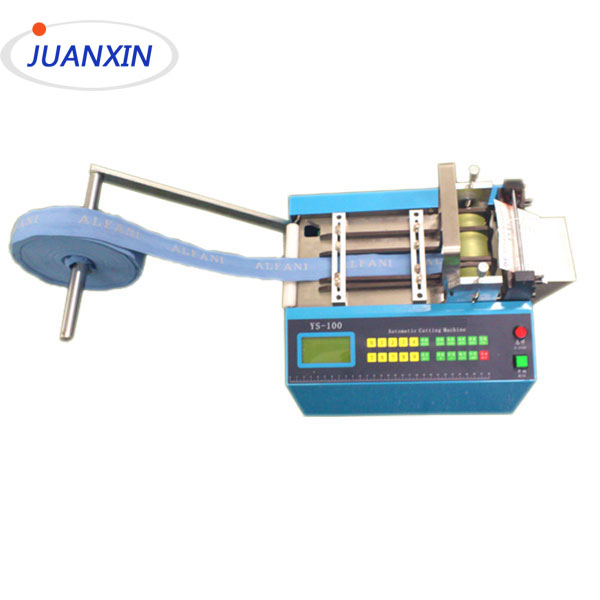

Automatic velcro/elastic/tape/ribbon/strap cutting machine
Usage:
The machine is suitable for cutting velcro, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, nickel strip.
Cut tubes: plastic pvc/rubber tube, silicone tube, heat shrink tubes, fiberglass tubes, insulation tube, teflon tubes, pvc sleeve, heat shrink sleeve,and other soft tubes.
Cut Cable/wire: Flat cable, ribbon cable, copper wire, Nickel wire, aluminum wire, etc
Cut Tape/belt: nickel strip, velcro, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc
Cut Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc
Cut Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc
According to the width of your strap, we can select suitable model for you.
YS-100 can cut tape less than 100mm width
YS-120 can cut tape less than 120mm width
YS-160 can cut tape less than 160mm width
YS-200W can cut tape less than 200mm width
YS-250W can cut tape less than 250mm width
YS-300W can cut tape less than 300mm width
If you are interested in our machine, please tell us what you want to cut and its size. We will select a suitable model for you.
Technical Parameters
Electric Power
|
AC 220V/110V 50HZ/60HZ
|
Electric Load
|
250W & 500W
|
Cut Length
|
from 0.1 MM to 9999.9MM
|
Cut Width
|
from 0.1 MM to 100MM
|
Cut Speed
|
It depend on the cut length, 100-120cuts/minute(50mm length)
|
Net Weight
|
28KG
|
Outer size
|
L360*W320*H350 mm
|
Packaging detail
|
Standard Export Carton Box .
|
Suitable tube dia |
Max 12mm |
Certificate |
CE |
Features
-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: hook and loop velcro,elastic, nylon/plastic zipper, ribbon, webbing,Nickel strip, strap, tape,etc
-Multi-functional usage: Cut shrink tubes, pvc tubes, fiber glass tubes,hook&loop Velcro, elastic, zipper, tape, flat cable, copper wire. Paper, plastic sheet, etc
