Industrial Solder Paste , Silicone glue Dispenser Machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-D331-X

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Industrial Solder Paste , Silicone glue Dispenser Machine
YouTube Video: https://www.youtube.com/watch?v=YSDxWs84Rns&t=26s
Suitable for:

Silica gel, EMI conductive adhesive,UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint, silicone glue

------------------------------------------------------------------------------------------------------------------------------------------

Application:



Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

------------------------------------------------------------------------------------------------------------------------------------------

Usage:

Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall, in the vertical plane and the gap of the products.

------------------------------------------------------------------------------------------------------------------------------------------

Features

1. English panel, easy operation.

2. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

4. Satisfy high quality glue dispensing by adjusting the parameters of screw

5. Precise stepper motor, numerical control available

6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative.

7. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

------------------------------------------------------------------------------------------------------------------------------------------

Specification:

Model

YS-D331-X

Power

220/110 V

Voltage

250W

Working area(X*Y*Z)

300*300*60 mm

Can be customized

Speed

Max. 500mm/sec

Dispensing quantity

Min. 0.001ml

Resolution

0.01mm

Repeatability

+/-0.01mm

Size(L*W*H)

680*570*680 mm

Weight

80KG

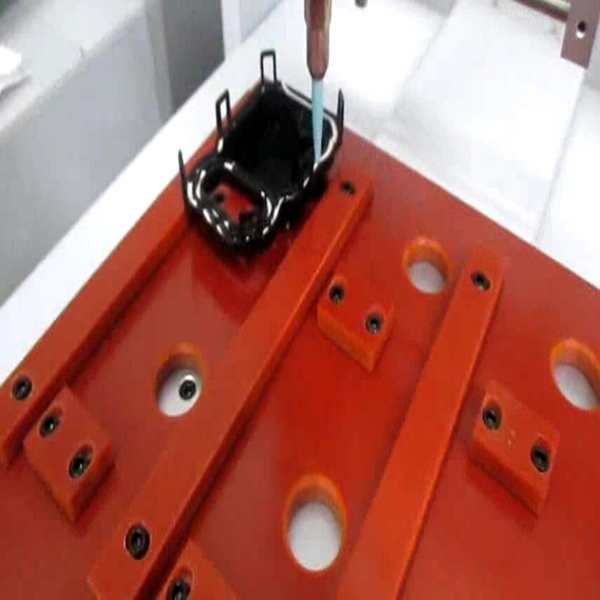

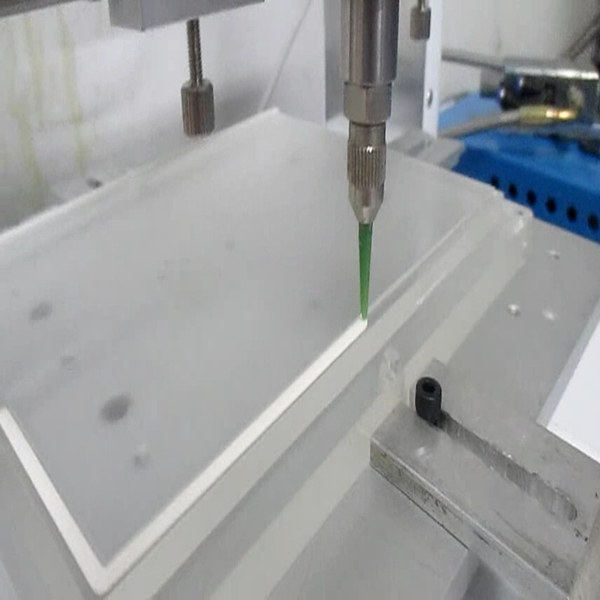

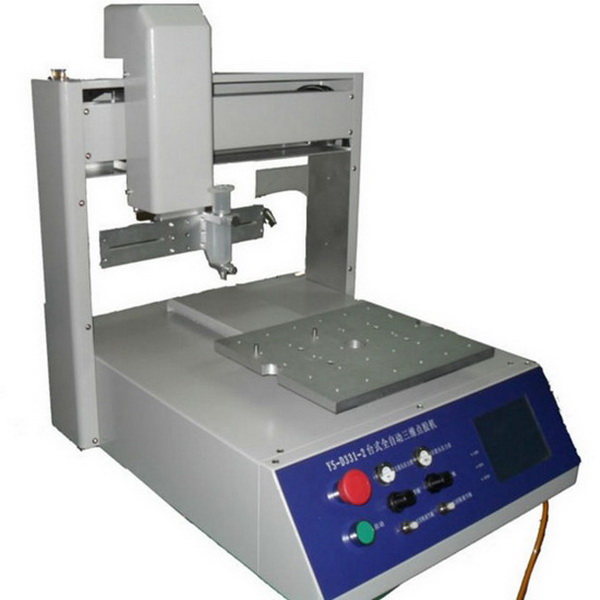

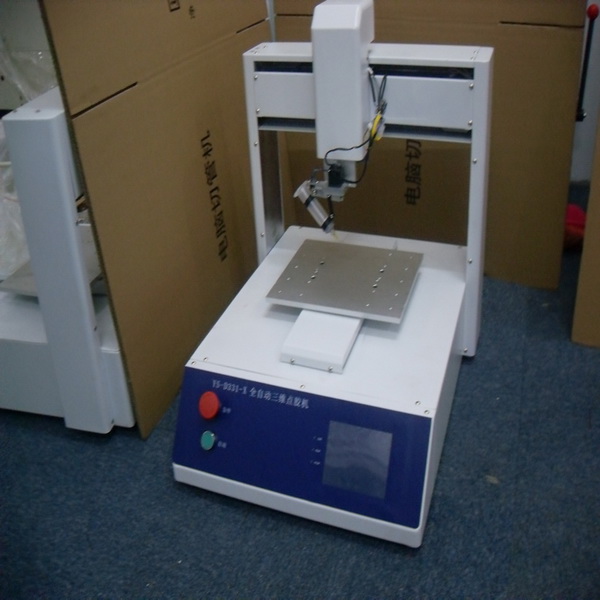

Product photos:
