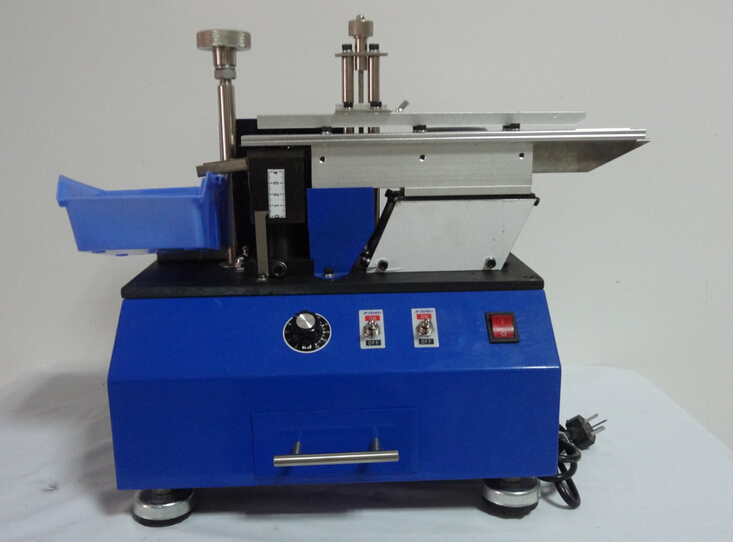

Loose radial lead cutter(trimmer) cutting machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-901

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

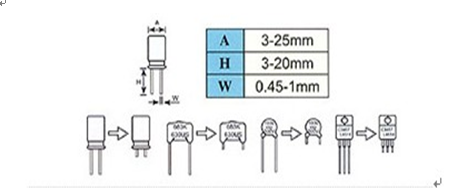

Suitable Components

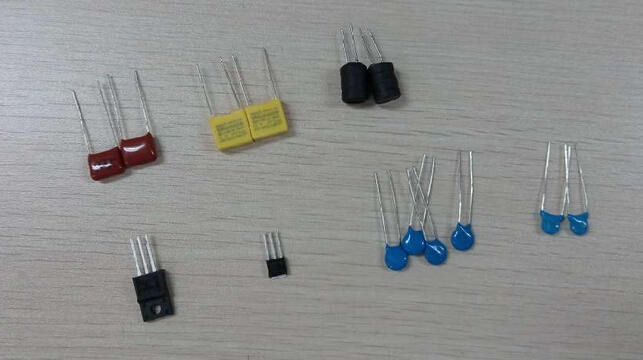

For Radial Components Leg cutting ,Such as capacitor, LED, triod, inductor.

Body length:3-25mm
 Lead length:3-20mm
 Diameter:0.4-1.5mm



Technical Data

Model :JX-901

Voltage : 220V AC60Hz/50Hz

Size: L470 x W380 x H450mm

Weight: 30kg

Working efficency : 120-180pcs/Min



Features

1. For semi-automatic capacitor leg cutting machine: bulk/ tube radial components cutting legs, manual feeding

2 Special cutting method: the material of the knife is imported from Japan steel with long life-span,easy changing.

3 Cutting legs is of high accuracy. The shortest legs can be cut to 3mm (more shorter need custom)

4 Motors, electrical parts are from Taiwan, Japan as well as the well-known industry in China.

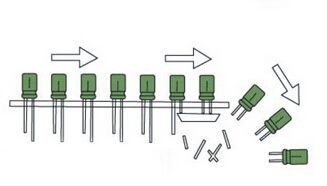

After cut
