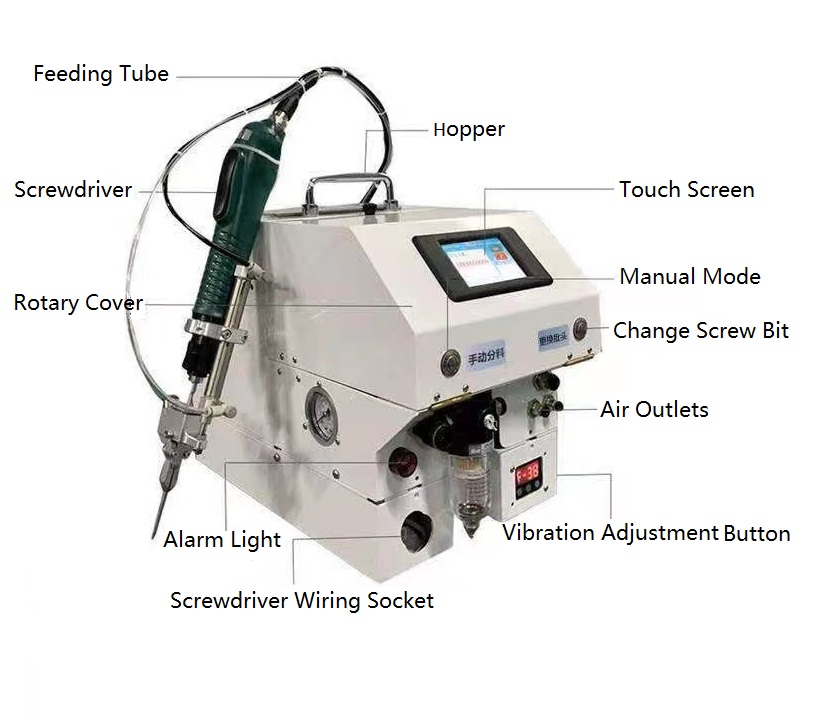

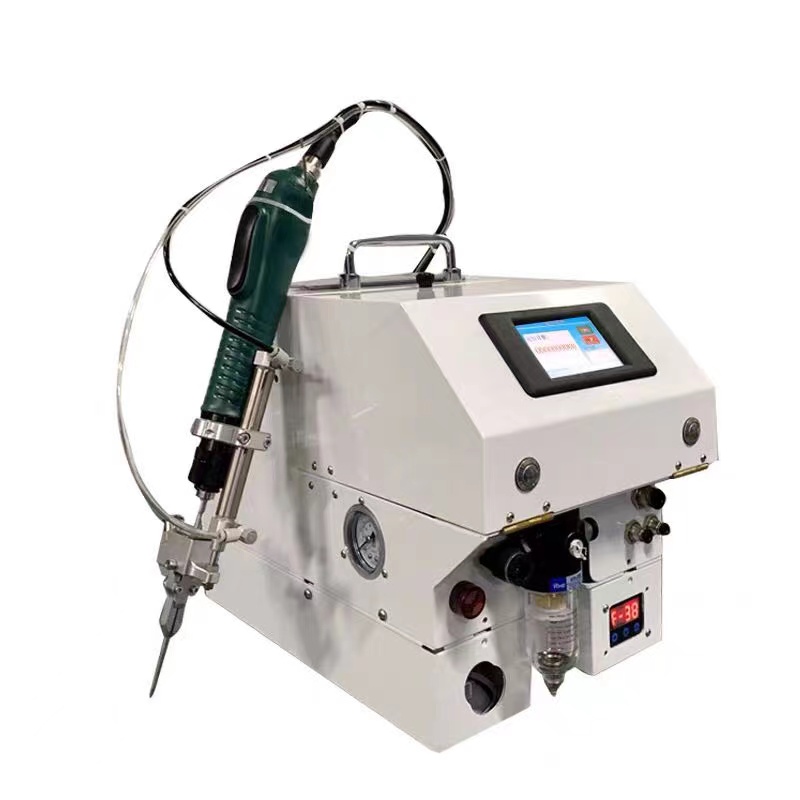

M1-M6 Handhold Screwdriver with Screw Auto Feeder Machine

Specifications:

Voltage: 110V/220V 50Hz/60Hz

Suitable Screws: M1.2-M6.0

Work Efficiency: 50~80pcs/min

Hopper Capacity: 3000pcs (M3*10)

Conveying Distance: 1m~4m

Working Pressure: 0.4~0.5Mpa

Weight: 11KG

Size: L370*W220*H280mm

Features:

1. Touch screen operation with English language makes it easy to operate and adjust the machine

2. Auto feeding mode and manual feeding model make operation flexible and efficient.

3. Screw counting function.

4. Alarm light and beep when failure occurs.

5. Password protection for the settings.

6. High speed work efficiency to lock one screw in one second.

7. Stable performance with straight screw locking and no jam.

8. Mature system to solve breakdown quickly.

9. Support various screw head styles: Slotted, Phillips, Triangle, Six-Lobe, Hexagon, H-type, etc.

10. Support various screw materials: iron, copper, stainless steel, etc.

Working conditions

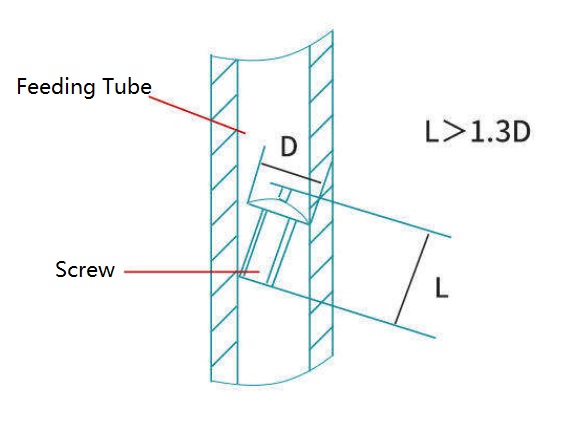

1. Screw dimensions requirements:

The screw length should be over 1.3 times greater than the screw cap’s diameter.

If the screw cap is greater than the screw length, the screw cap may come out first, because the screw will turn over during feeding screws.

The screw length should be less than 40mm.

2. We need screw samples for machine production and test.

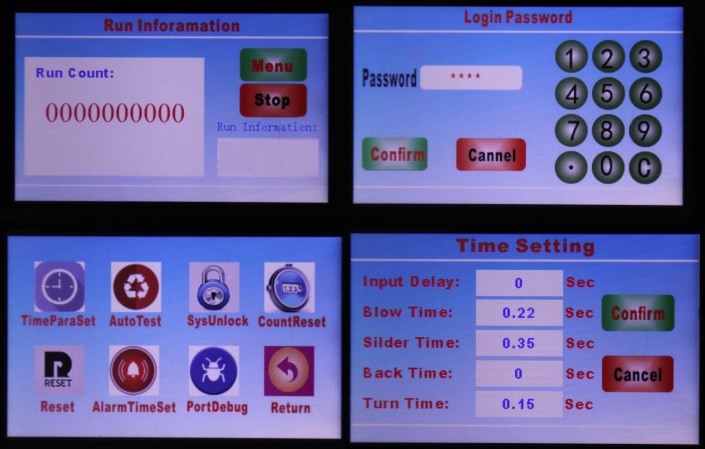

English Display and Touch Settings
