Axial loose/tape component lead cutting and forming machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-904A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Axial loose/tape component lead cutting and forming machine


Usage:

Suitable for Axial taped/loose resisitor and electronic components lead cutting and forming into U  or F type assembly.

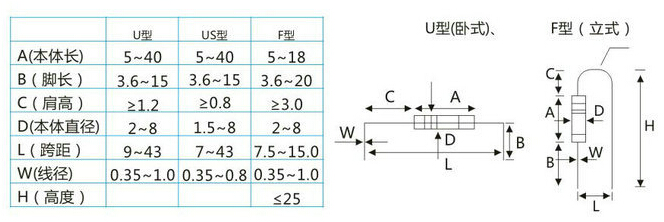

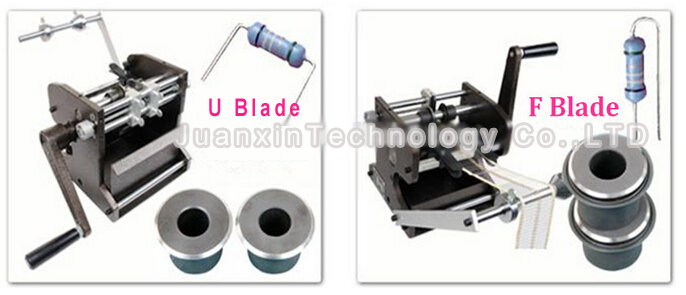

Forming Type: U type (horizontal)& F (vertical). Can not be shared for one machine
Optional electric modules, consisting of electric resistor lead forming machine


 Feature

1. This machine is suitable for axial tape or loose resistors and electronic components forming and cutting feet;
2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;
3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;
4. Forming span and feet length are adjustable;
5. Using tools imported from Japan, durable;
6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.


Parameters:
Model::JX-904A
Voltage:220V AC60Hz/50Hz
Size:L560 x W500 x H380mm
Weight:45KG/75KG
Efficiency:3000-60000pcs/H
