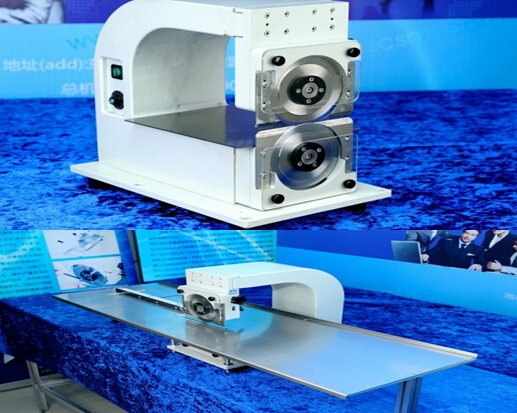

V cut pcb cutting machine, pcb depanelizer

V-cut pcb cutting machine, Aluminum pcb cutter

Suitable for separating v-cut pcbs to units. For unlimited length of pcb

Features

1.For unlimited length of v cut pcbs cutting
2.Cutting speed is adjustable and controlled easily
3.Small cutting press can avoid solder crack
4.The distance between upper and lower knives can be adjusted according to the thickness of boards.
5.The cutting blade is durable. Cab ve grinded.
6.The surface of the machine sprayed by white powder, hard to fall off.
7.All PCB with v-cut can be separated by this machine.
9.One group blade cutting machine, apply to FR4, MCPCB, LED LIGHT STRIP BOARD.
10. Optional 1.2m & 2.4m platform

Note: Only 1 group blade, up and down, It is hard to control the quality, edge of board is not smooth.

Specifications

Name: V cut pcb cutting cutter machine

Machine size: 380*290*380mm

Maximum cutting length: no limits

Speed:0-1000mm/s

Pcb Thickness: 0.8-3.5mm

Voltage: 220VAC/110VAC

Weight: 29kg

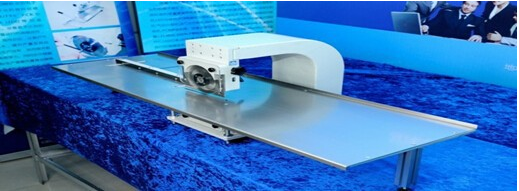

Long Platform for cutting pcbs
