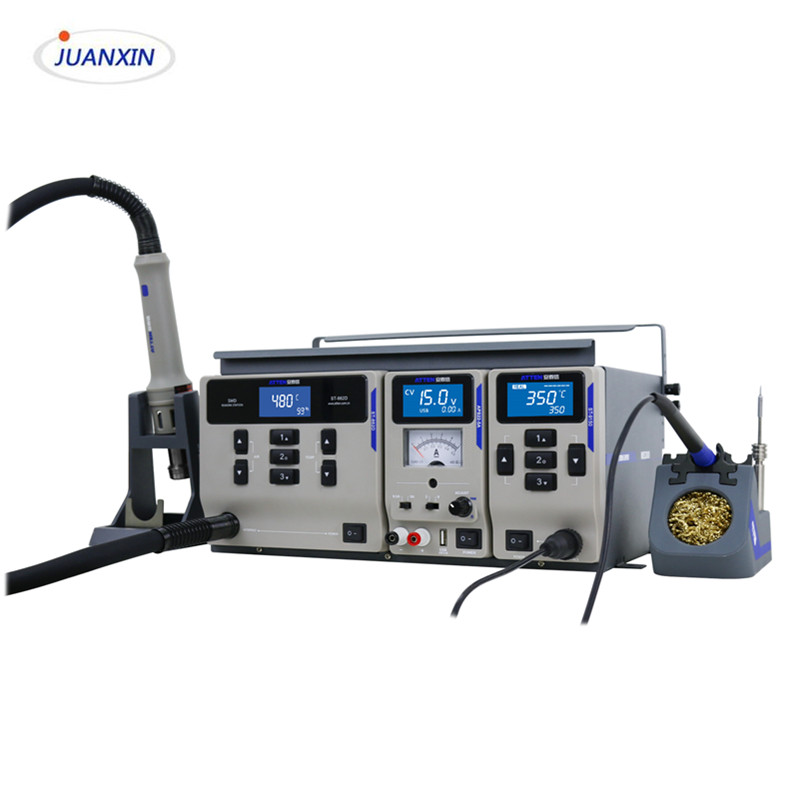

MS-500 PCB Soldering Rework System 3-in-1 Soldering Station

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: MS-500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description
Maintenance System MS-500 Hot Air Rework desoldering Iron Station 3-in-1 SMT PCB Soldering Station

YouTube video: https://youtu.be/4vE3QxoTvWc

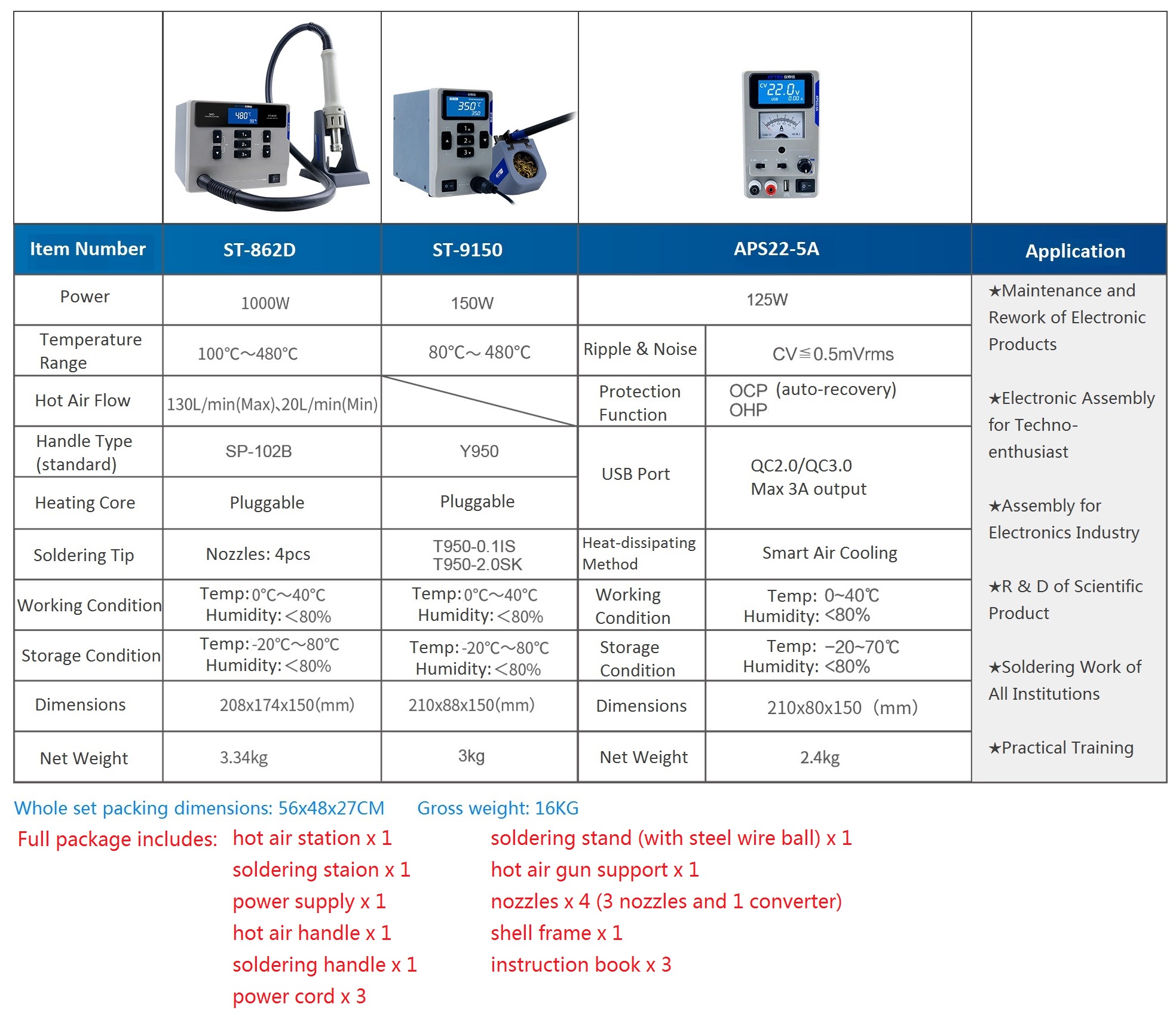

MS-500 soldering station is composed of three parts: ST-862D hot air station, ST-9150 soldering station and APS22-5A voltage power supply.

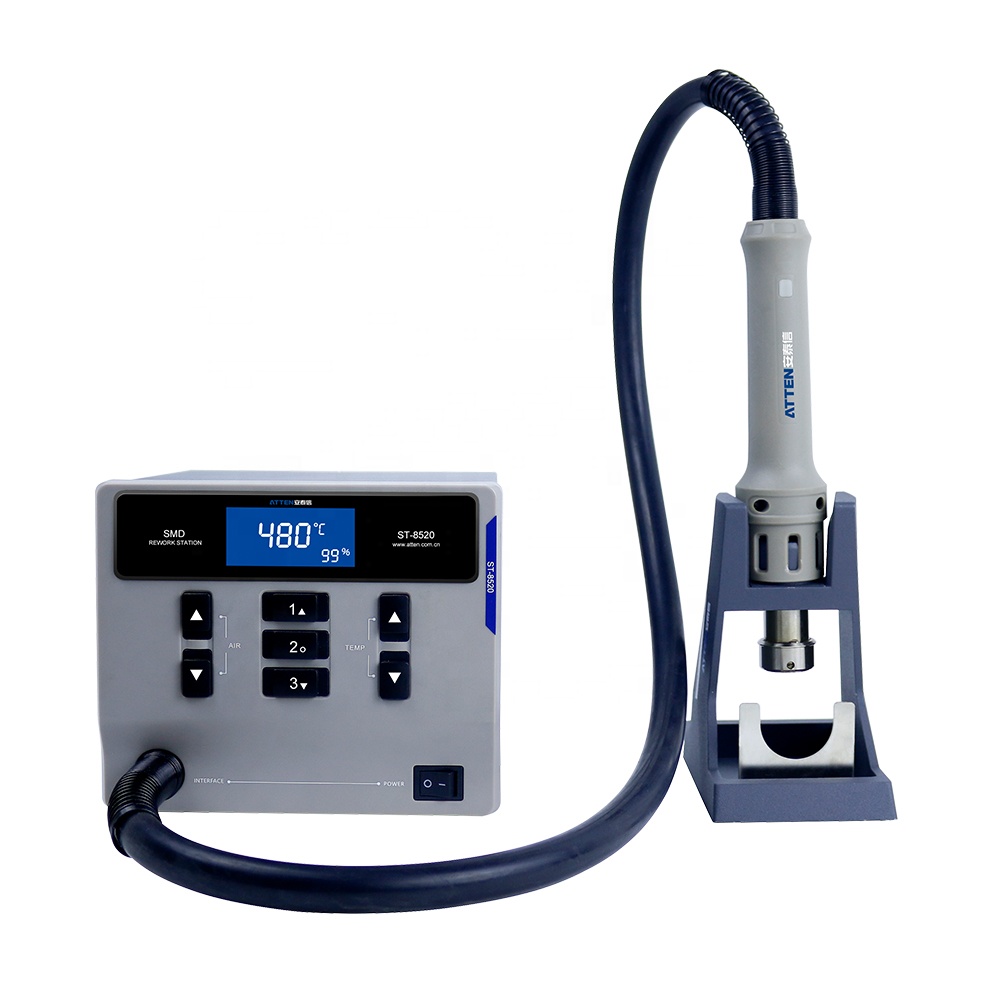

Hot Air Station
●LCD display and visualized operation

●Quick temperature switch

●℃/℉ unit switch

●Temperature lock & timed work

●MCU controlled temperature calibration,compensation for constant working

●Strong air flow with brushless fan

●Quick and easy replacement with pluggable heating core

●Convertible straight air and spiral air

●Auto sleep function

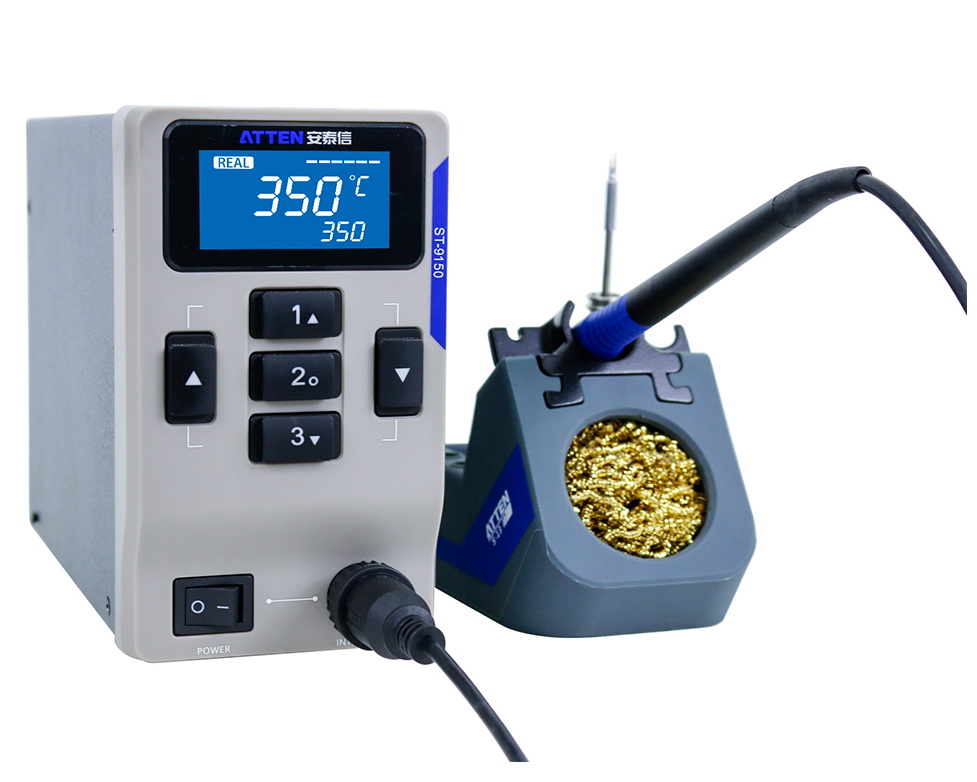

Soldering Station

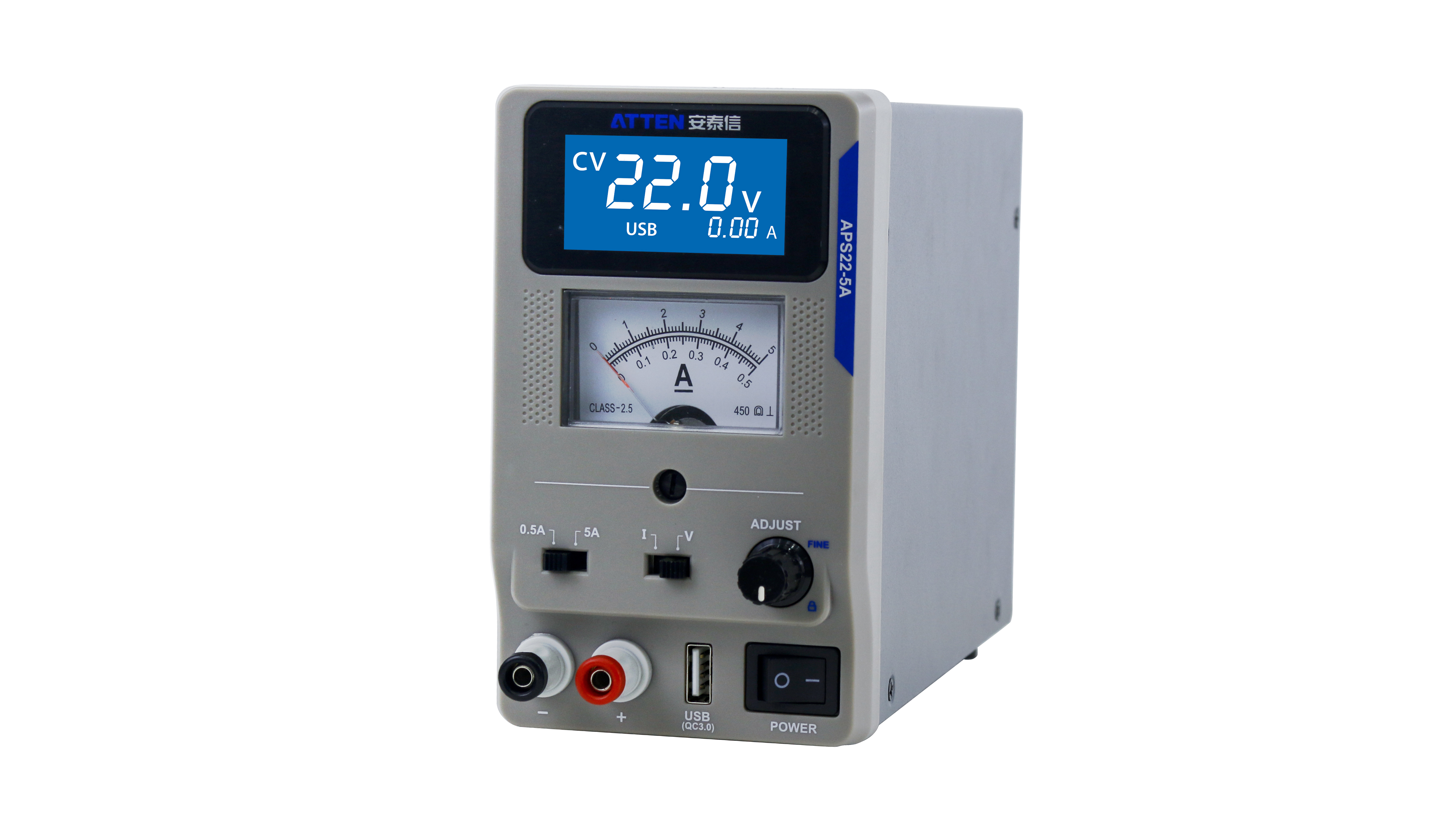

Power Supply

●Controlled by MCU digital and series adjustment, low ripple, low noise and high stability.
●Designed with double types of tables, more suitable for telecommunication devices.
●Fast dynamic load response speed, optimized design for communication equipment.
●Auto-recover over current protection(OCP) and over heat function(OHP).
●Independent USB interface, which can provide current 3A output, support over current and short circuit protection, and QC protocol.
●Voltage and current continuously adjustable within nominal range. Double-gears designed current capable for different situations.
●Current gear self-adaptive adjustment for work at full capacity.
●Voltage adjusted in coarse or fine modes by digital encoder to achieve higher precision and longer service life.
●Output adjust and lock function and beeper alarm function to avoid misoperation.
●Intelligent fan dissipates heat automatically as per inner temperature

Packing Details:

Item Quantity
Hot air station 1
Soldering station 1
Power supply 1
Hot air handle 1
Soldering handle 1
Power cord 3
Soldering stand (including steel wire ball) 1
Hot air gun support 1

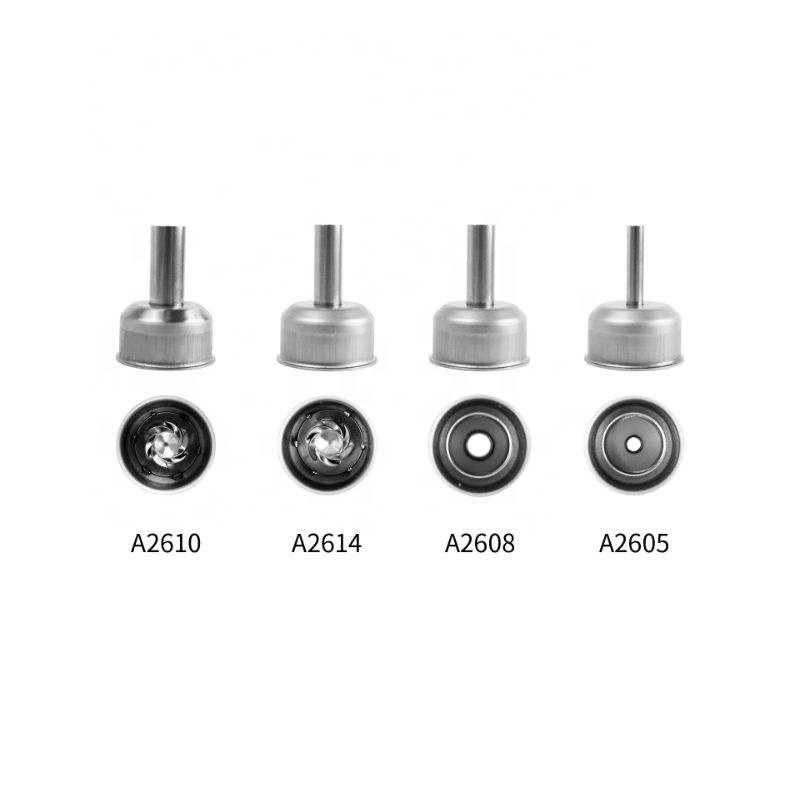

Nozzles 4 (3 nozzles and 1 converter)
Sheet metal bracket 1
Instruction book 3

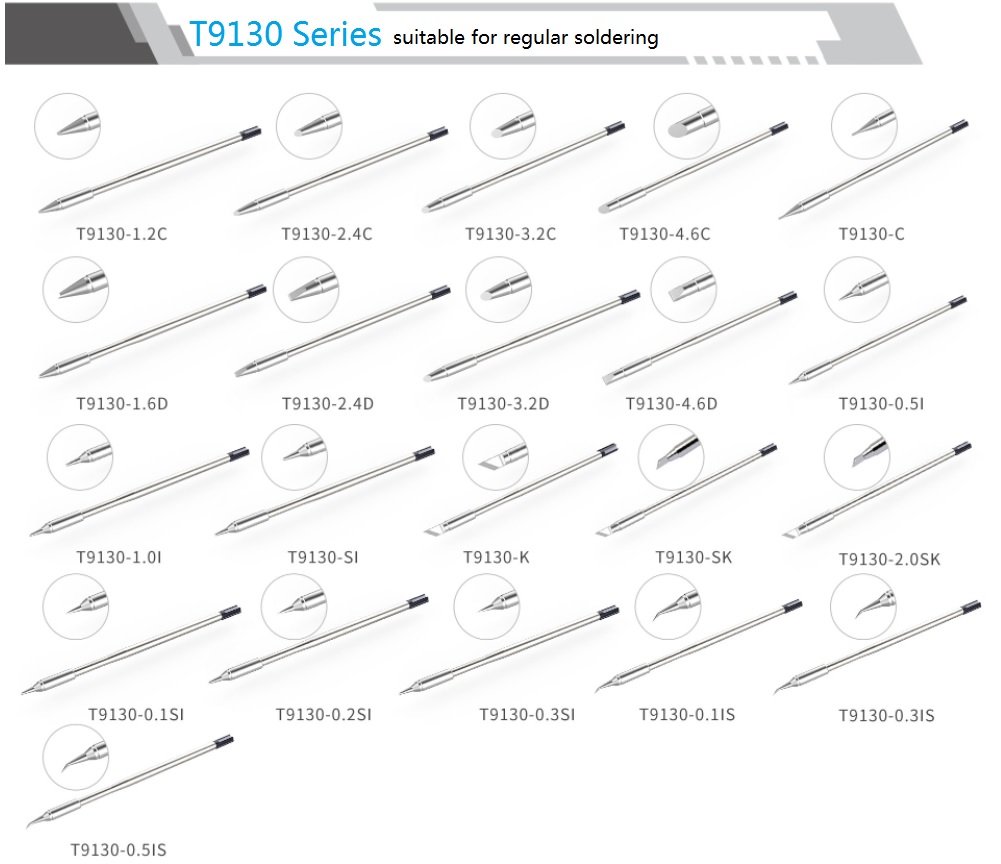

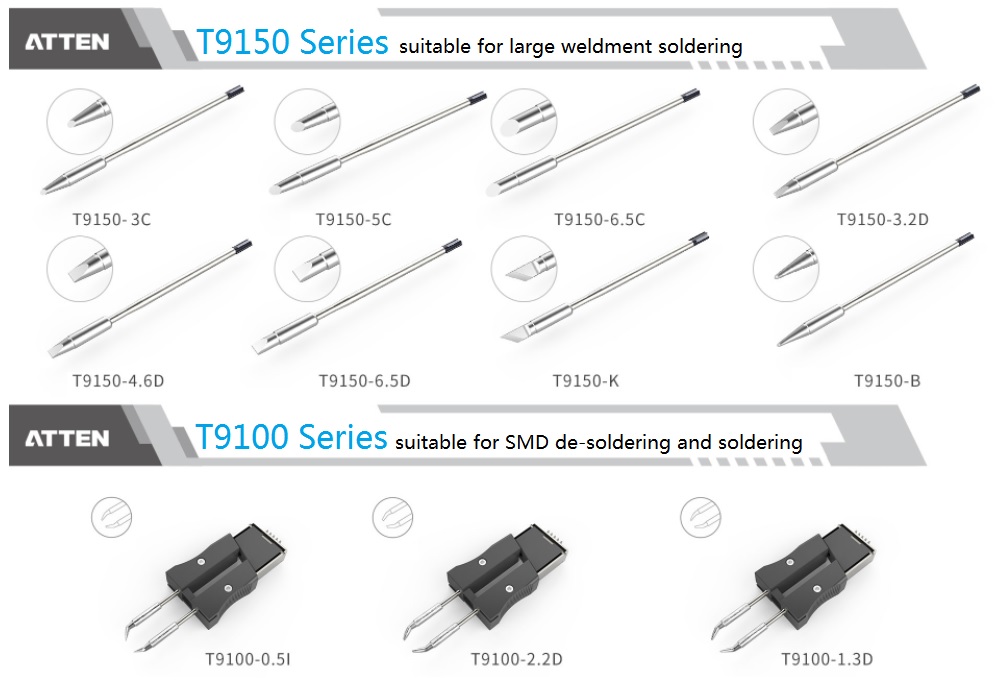

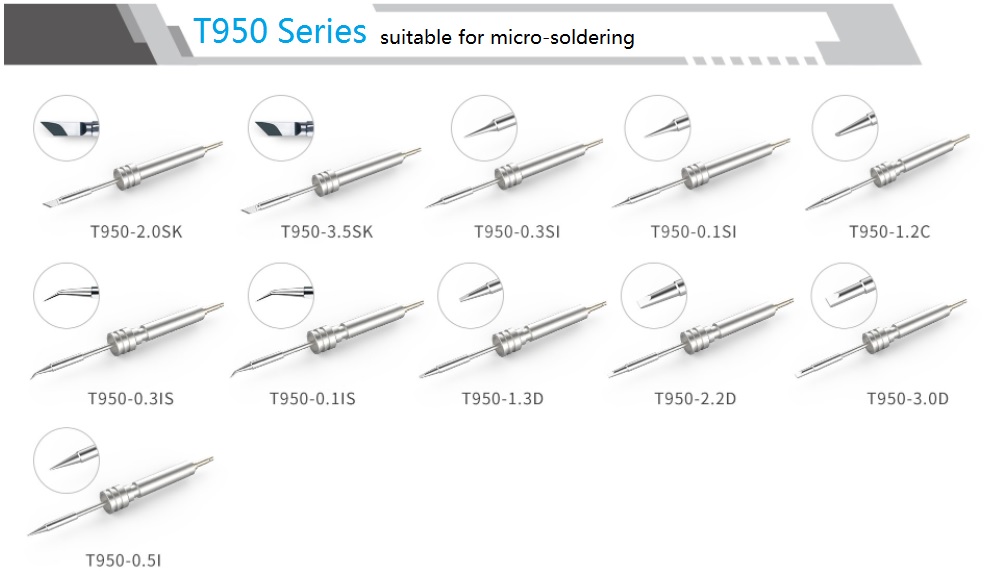

Soldering Tips:
