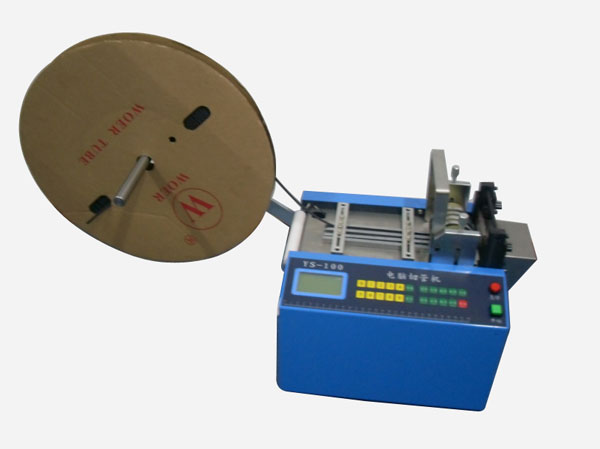

Heat Shrink Tube Cutting Machine/Shrink Tube Cutter

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-100

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

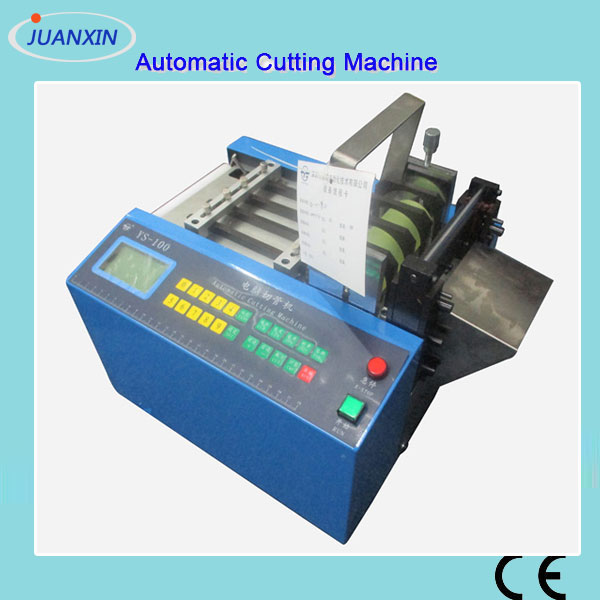

Automatic heat shrink tube cutting machine/heat shrink tube cutter

Usage:

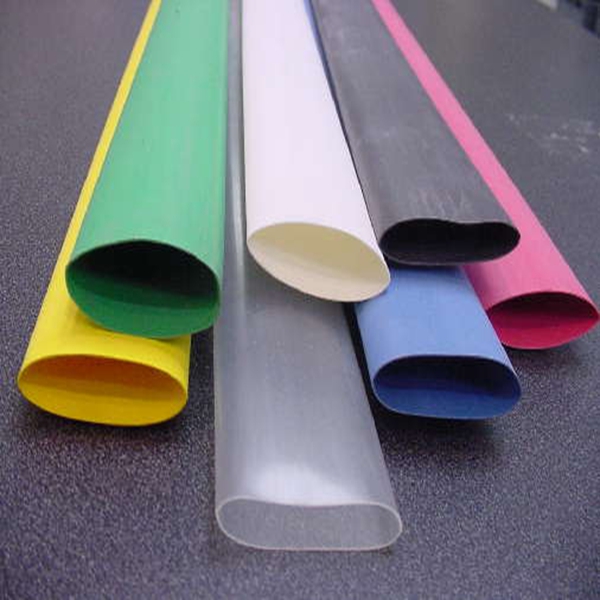

Tube cutting machine is suitable for various tube, such as pvc tube, rubber tube, heat shrink tube, fiberglass tube, teflon tube,silicone tube. Also it can cut velcro, elastic, ribbon, belt, strap, cable, ribbon cable, copper wire, copper foil, paper, pvc sleeve, heat shrink sleeve, Nickel strip, etc.

If you are interested in our machine, please tell us what you want to cut and its size. We will select a suitable model for you.

Parameters



Electric Power

AC 220V/110V  50HZ/60HZ

Electric Load

250W & 500W

Cut Length

from 0.1 MM to 9999.9MM

Cut Width

from 0.1 MM to 100MM

Cut Speed

It depend on the cut length, 100-120cuts/minute(50mm length)

Net Weight

28KG

Outer size

L360*W320*H350 mm

Packaging detail

Standard Export Carton Box .


Suitable tube dia Max 12mm
Certificate CE

Features
-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: hook and loop velcro,elastic, nylon/plastic zipper, ribbon, webbing,Nickel strip, strap, tape,etc
-Multi-functional usage: Cut shrink tubes, pvc tubes, fiber glass tubes,hook&loop Velcro, elastic, zipper, tape, flat cable, copper wire. Paper, plastic sheet, etc
