Automatic wire cutting and stripping machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-B04

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

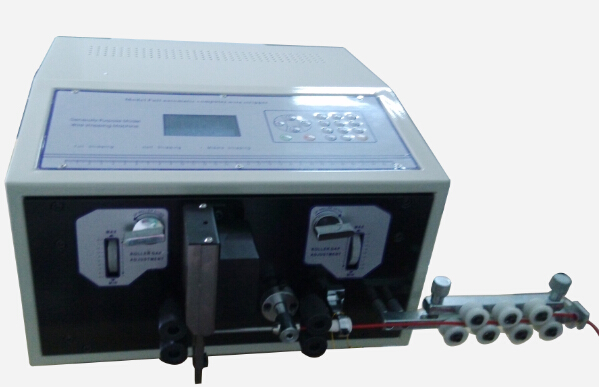

Automatic wire cutting and stripping machine

Overview

JX-B04 an economic efficient automatic cut & strip machine. Wide application range, high productivity, simple operation and the well-known stripping quality are the main features of this machine. It can cut and strip wires from 0.1 mm² to 4 mm²  efficiently and precisely.
·         Cutting to length

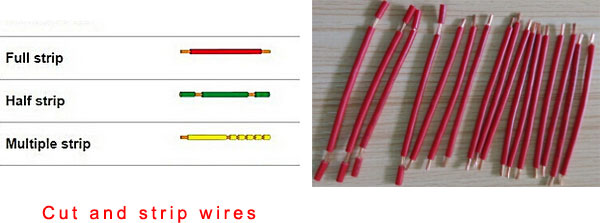

·         Full or partial stripping
·         Exceptional price to performance ratio
·         Processing of short cables
·         User-friendly operation



Technical Data

Wire range Single core with single or multiple strands / Flexible or rigid
Wire gauge 0.1-4.5mm2(AWG 12-AWG 27) Note: Other models for wires outside this range
Wire diameter Max 4mm
Cut length 1-9999mm
Strip length front end 0-30mm  rear end 0-15mm
Suitable wires PVC/teflon/fiberglass coated wires
Cut tolerance +/-(0.002xL)mm
Power supply 220V/110V  50HZ/60HZ   180W
Step motor Angle precision Three phase six pat 1.5/3
Display mode English display
Middle strip Max 10 sections
Cut and strip speed 3000-8000 pcs/hour
Blade material hard tungsten steel
Drive mode 2 rollers
Usage Cut and strip wires/cables

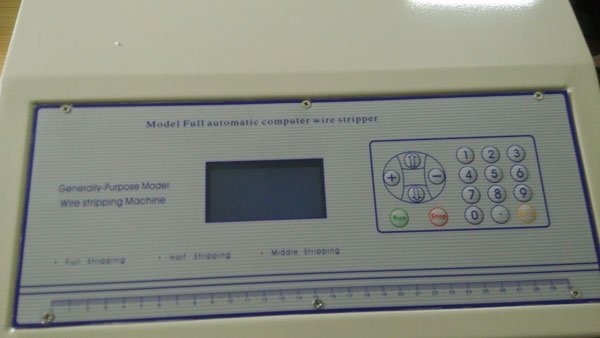

Full English Panel
