JX-360/360TL Cable Wire Cutter And Stripper For Max 10mm2

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-808A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

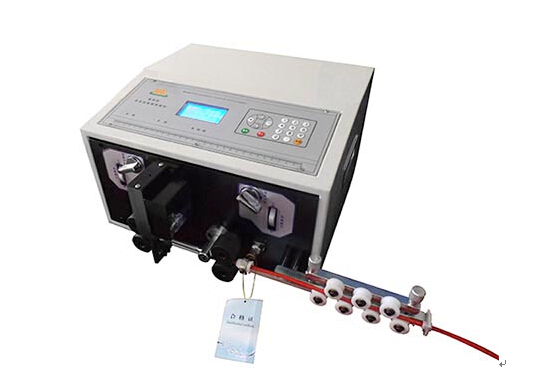

Automatic Wire Cutting And Stripping Machine For Max 10sqmm Wires


Intro:





JX-360 is full automatic type wire cutting and stripping machine. It can work for both electric single core wire within 10 sqmm and multi-conductor cables with max 8MM OD. Cut length is 0.1-9999MM adjustable. Standard machine can make max 50MM strip length. If you need longer strip length, we can modify it to strip 200MM or longer.


Note: This machine is suitable for single core stranded wires with max 10sqmm, and multi-core cable with max 8MM.




Suitable:





1. Multi-functional wire cutter and stripper, High accuracy, Fast speed

2.Suitable for round muti-core cable within 8MM OD. Or electric wire within 10 sqmm.

3. Cut and strip function

4.With big 60/100 stepping motor and 12MM conductor, for different size of cables



Specification:





Model JX-360 JX-360T(Lift Roller Type)
Size 570x280x410MM

570x280x410MM



Weight 38KG 40KG
Power Supply AC 220V/110V 50HZ/60HZ AC 220V/110V 50HZ/60HZ
Available size 0.1-10sqmm 0.1-10sqmm
Cut length 0.1-99999.9mm 0.1-99999.9mm
Strip length

Front end:0-80mm

Rear end:0-50mm

Front end:0-200mm

Rear end:0-80mm

Conduct tube dia 4mm,6mm,8mm 4mm,6mm,8mm,10mm
Drive Mode 4-wheel driving 4-wheel driving
Working efficiency 2000-3000PCS/H 1500-2500PCS/H



Feature:





1. Fast speed cutting and stripping machine for wiring harness processing.

2. Multi-functional machine. For electric single core wire, multi-conductor cable.

3. LCD display shows parameters. Press buttons to set length, quantity,etc.

4. Nice appearance, simple operation,convenient maintenance, stable performance, speed, precision higher character.

5. Cut length and strip length can be adjustable easily.

6. Different working mode for different types of wires.

wire stripper
