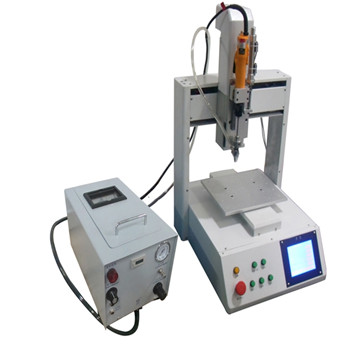

Automatic Desktop Electric Screwdriver Machine for Assembly

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-L301

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Application:

This equipment is used for locking screws applied in electronics, household appliances, Auto, toy industry and so on, which can greatly improve the production efficiency. Please provide relevant product information and locking requirements if you need more details.

Specification:

Model

YS-L301/YS-L302

Voltage

220V

Power

360W

Efficiency

3-5 second/workpiece

Import method of screw

Air-blowing type

Capacity of screw pocket

8000 pcs

Customize

Yes

Scope of applicative screws

M1 - M6

Suitable screw head

For any universal type

Size(L*W*H)

670*550*610 mm

Weight

60kg

Features:

1) Wide universality, small in size, can cooperate with production line, convenient for product replacement.

2) High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements. Several electric screwdrivers can work at the same time, which is the work of a number of workers. For example, a desktop automatic screw locking machine with 4 electric screwdrivers can lock continually with 4 screws at one time; it can lock several products at the same time.

3) The Y axis can be made into double-station (that is, double Y axis),so the operator can load alternately.

4) Reduce the labor intensity of workers.

5) High degree of automation, easy operation which the staff can master and debug quickly. A worker can manage several machines at the same time.

6) Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.

7) The air-blowing screw is transmitted to the month of the electric screwdriver directly compare with the air-breathing ones, which saves the time of back and forth and ensures the efficiency.

8) With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing, which will reduce leak screws of the products and increase the qualified rate.
