CE approved air blowing type automatic screwdriver machine w

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-L301

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

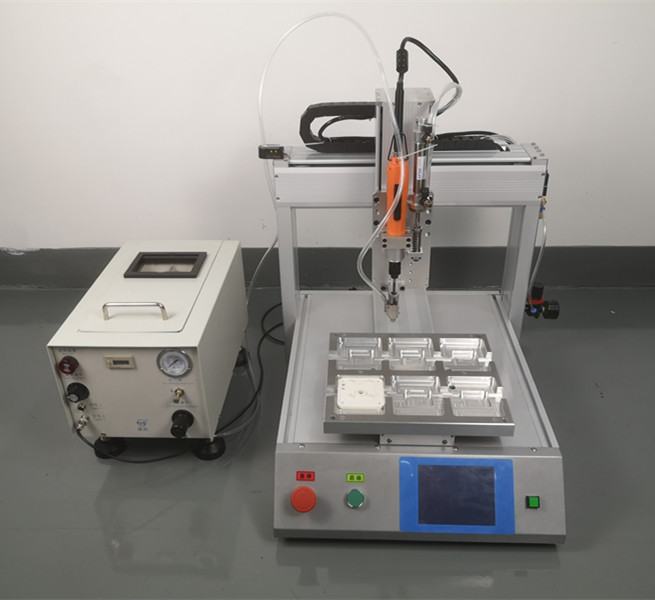

Automatic Desktop 3 Axis Screwdriver Machine (Air Blowing Type)
Model: YS-L301

YS-L301 above is our basic model, with single screwdriver and single work area.
According to your screw and product, we can customize machine with multi screwdrivers or multi work areas to best meet your requirements.


Introduction
Automatic screwdriver machine puts the automatic screw feeding mechanism together with the electric screwdriver in order to achieve the complement of screw transmission and lock, which can greatly improve the production efficiency and save manpower.
Once the screwdriver is lifted after fastening a screw, another screw will be sent continuously to continue the operation, which is particular suitable for the work piece of multi-station with the same specification.

Specification:
Model YS-L301
Voltage 220V/110V, 50Hz/60Hz
Power 360W
Efficiency 3-5 second/workpiece
Import method of screw Air-blowing type
Capacity of screw pocket 8000 pcs
Scope of applicative screws M1 - M6
Suitable screw head Slotted, Phillips, Triangle, Six-Lobe, Hexagon, H-type, etc
Working area 300*300mm  (can be customized)
Size(L*W*H) 670*550*610 mm
Weight 90kg
Certification CE
Warranty 1 year and lifelong service

Features:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements.
Several electric screwdrivers can work at the same time, which is the work of a number of workers.
For example, a desktop automatic screw locking machine with 4 electric screwdrivers can lock continually with 4 screws at one time; it can lock several products at the same time.
3. The Y axis can be made into double-station (that is, double Y axis),so the operator can load alternately.
4. Reduce the labor intensity of workers.
5. High degree of automation, easy operation which the staff can master and debug quickly. A worker can manage several machines at the same time.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. The air-blowing screw is transmitted to the month of the electric screwdriver directly compare with the air-breathing ones, which saves the time of back and forth and ensures the efficiency.
8. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing, which will reduce leak screws of the products and increase the qualified rate.

Application:
This equipment is used for locking screws applied in electronics, household appliances, Auto, toy industry and so on, which can greatly improve the production efficiency.
Please provide relevant product information and locking requirements of you need more details.

Advantages:
1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.
2. High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.
3. Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.
