Automatic magnetic type lock screw machine screw capping mac

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-L541

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

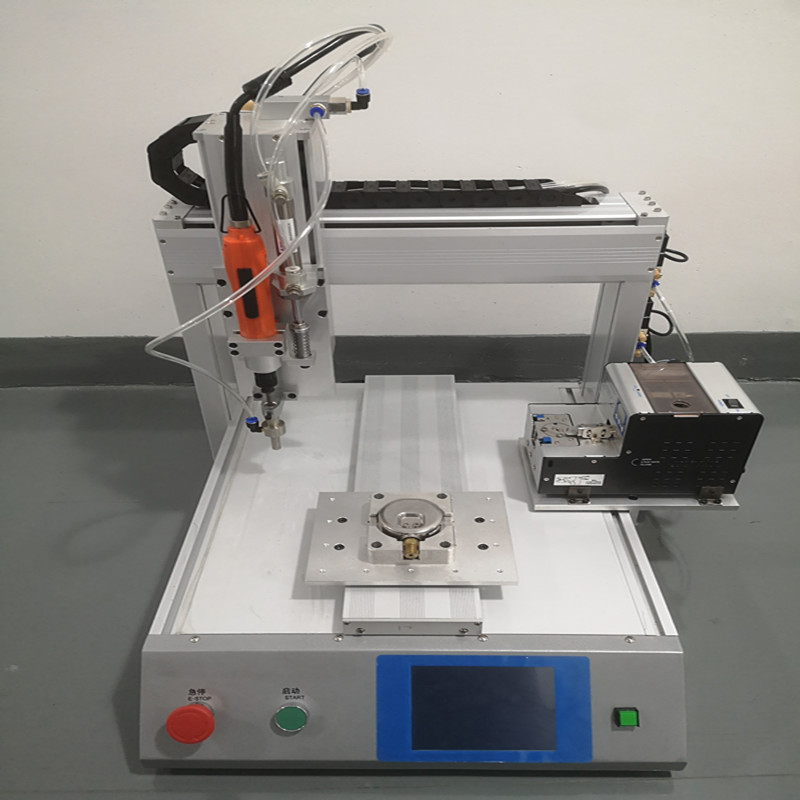

Automatic 3 Axis Screwdriver Robot
Model: YS-L541


Features:
l High Efficiency: automated screw feeding and tightening, fast and stable.
l Reduce Labor Intensity: labor only needs to place and pick product while machine feeds and tightens screws automatically.
l Easy Operation: Touch screen operation, fast to grasp operation and adjustment skills. One labor can manage several machines at same time.
l High Quality of Work: accurate torque, easy adjustment and precise positioning complete screwing job with high quality.
l Suitable for various kinds of screws.

Parameters:
Model YS-L541




Structure
Weight 60kg
Size 610(L)*680(W)*550(H)(mm)
Working Area 300*300*100(mm)
Structure Material Premium Aluminum
Voltage AC 220V/110V 50HZ/60HZ
Power 360W
Air Source  >0.5MPa
Air Consumption 10m³/hour
Drive Mode stepping motor+ HIWIN rail


Control System
Host Controller Self-developed
Display 5.7 inch touch screen
Startup auto model or manual mode


Screw Feeder
Auto Feeder on machine frame
Feeder Amount 1 set
Screw Import adsorption type
Suitable Screw M1-M6
Srewdriver Screwdriver Optional as per client’s request

Application
Product Size Can be custom made stations as per client’s product size
Vertical Adjustable Range Can be custom made
Screwing Depth Optional as per client’s request

Detection
Torque YES
Screw Loose YES
No Load YES
