JX-L08 Handheld Screwdriver Machine with Automatic Screw Fee

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-L08

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Product Description

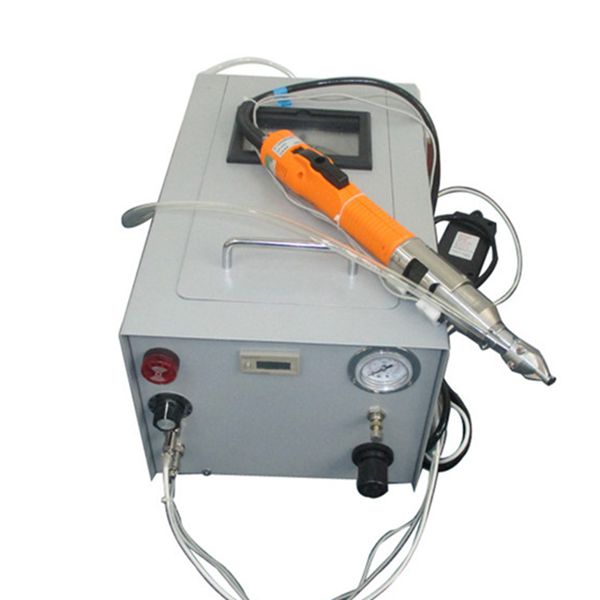

JX-L08 Automatic Screwdriver Machine is made of 3 main parts: 1.Screw feeding system. 2. Screw sorting system. 3. Screw locking system.
These 3 systems are controlled by the machine's program.


Machine feeds screws in a turbine way and order screws on a vibration guide rail, and transport screws to
Screw Sorting System, through magnetic resonance,  then sort one screw per time and send it to
screwdriver nozzle, finally electric or pneumatic screwdriver will lock the screw into products.

Parameters

Voltage

AC220V/110V  50HZ/60HZ

Working pressure

2-3KGF/cm2

Working efficiency

50-70PCS/MIN(Depends on screw length)

Noise

Lower than 65db

Conveying distance

1-4m

Hopper capacity

5000pcs for M 2x6 screws

Size

L370*W250*H190MM

Weight

9KG

Screw length

Less than 45mm

Suitable screws

M2.0-M6.0

Automatic

Yes, Auto feeding, sorting and locking screws



Features

1. Automatic screw feeding, sorting and locking for various shapes screws. One-hand operation.

2. Torsion precision and convenient adjustment, ensure the quality of screw locking

3. Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.

4.  Warning function when lack of screws.(Acousto-optic alarm)

5. High efficiency. No need to pick up screws, move screws and put screws. Just need to lock the screws aimed at the screw hole.

6. Sensor controls screws feeding one by one to avoid  feeding repetition.

7. Can lock screws very fast, around lock 60 screw per minute.



Advantages:

High efficiency---One hand working. Easily locking screws repeatedly, no need to pick up and put screws.

Easy to use---With training, New users can easily operate it. Long-term operation cause no tire.

Stable function--- Imported parts, precise processing, stable and safe.



Application

1, Available Screw head styles: Slotted, Phillips, Triangle, Six-Lobe, Hexagon, H-type, etc

2,Suitable Screws: M2-M6

3, Suitable Screw Finish Code: Ni-Plated, wreath, colored Zinc-plated, white zinc-plated, copper-plated, etc

4, Suitable screw materials: iron, copper, stainless steel, etc

5, Suitable lock screws products materials: plastic, iron, aluminum, wood etc.

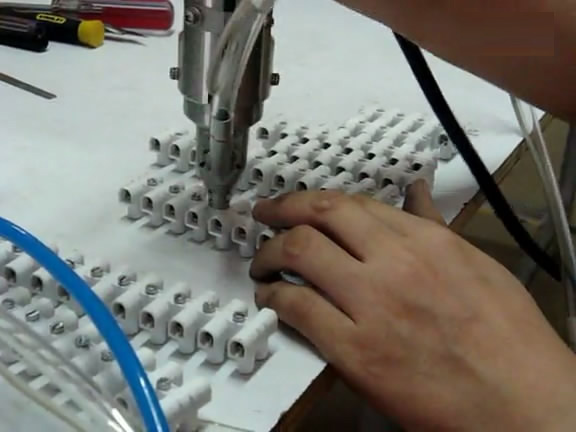

6,Suitable for various industry: such as cell phone, keyboard,toy,LCD/LED module, Communication Equipment, and other electronics production and installation.
