YS-L501-2 Double Screwdriver One Work Table Screwdriver Robo
Product Details:
Place of Origin:
China
Brand Name:
JUANXIN
Certification:
CE
Model Number:
YS-L501-2
Payment & Shipping Terms:
Minimum Order Quantity:
1set
Price:
negotiation
Packaging Details:
wooden case or carton box
Delivery Time:
3-5 days
Payment Terms:
FOB/EXW/CIF
Supply Ability:
1000 set /week
Detailed Product Description

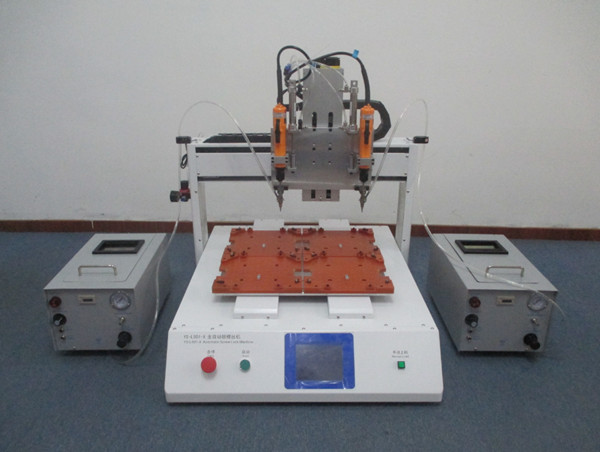

Product Introduction Automatic Screwdriver Robot Machine is made of three parts: auto screw feeder, screwdriver and 3 axis (XYZ) robot.
Auotmatic screw feeder sorts and feeds screws to screwdriver tip automatically, the robot moves the screwdriver to the programmed position and tightens screw onto product item which is placed on work table.
Video above shows how machine works. Also you can contact us for video file.
Specification
Model
YS-L501-2
Voltage
220V/110V, 50Hz/60Hz
Applicable Screw
M1.0-M6.0
Suitable Screw Head
slotted, phillips, triangle, hexagon, H-type, etc.
Efficiency
1-2 seconds/workpiece
Import Screw Method
Air blowing type
Capacity of Screw Pocket
8000pcs
Torque
Adjustable
Work Table
500mmx500mm (can be customized)
Size
870mmx750mmx710mm
Weight
120KG
Package
Wooden case for exporting
Warranty
One year warranty and lifelong service
Features
1) Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2) High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements.Several electric screwdrivers can work at the same time, which is the work of a number of workers.
For example, a desktop automatic screw locking machine with 4 electric screwdrivers can lock continually with 4 screws at one time; it can lock several products at the same time.
3) The Y axis can be made into double-station (that is, double Y axis),so the operator can load alternately.
4) Reduce the labor intensity of workers.
5) High degree of automation, easy operation which the staff can master and debug quickly. A worker can manage several machines at the same time.
6) Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7) The air-blowing screw is transmitted to the month of the electric screwdriver directly compare with the air-breathing ones, which saves the time of back and forth and ensures the efficiency.
8) With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing, which will reduce leak screws of the products and increase the qualified rate.
