Detailed Product Description
Programmable High Precision Automatic Glue Dispensing Robot/Glue Dispenser Machine for All Liquid
Suitable for:
Silica gel, EMI conductive adhesive,UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint, silicone glue
------------------------------------------------------------------------------------------------------------------------------------------
Application:
Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
------------------------------------------------------------------------------------------------------------------------------------------
Usage:
Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall, in the vertical plane and the gap of the products.
------------------------------------------------------------------------------------------------------------------------------------------
Features
1. English panel, easy operation.
2. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. Satisfy high quality glue dispensing by adjusting the parameters of screw
5. Precise stepper motor, numerical control available
6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative.
7. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
------------------------------------------------------------------------------------------------------------------------------------------
Specification:
|
Model
|
YS-D331-X
|
|
Power
|
220/110 V
|
|
Voltage
|
250W
|
|
Working area(X*Y*Z)
|
300*300*60 mm
Can be customized
|
|
Speed
|
Max. 500mm/sec
|
|
Dispensing quantity
|
Min. 0.001ml
|
|
Resolution
|
0.01mm
|
|
Repeatability
|
+/-0.01mm
|
|
Size(L*W*H)
|
680*570*680 mm
|
|
Weight
|
80KG
|

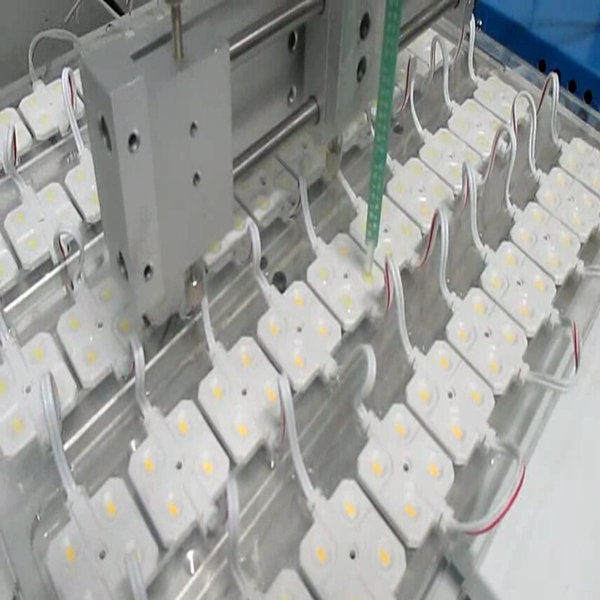

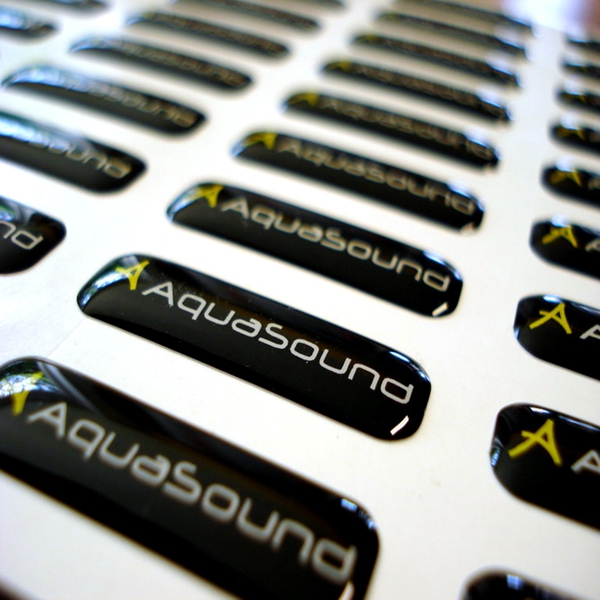

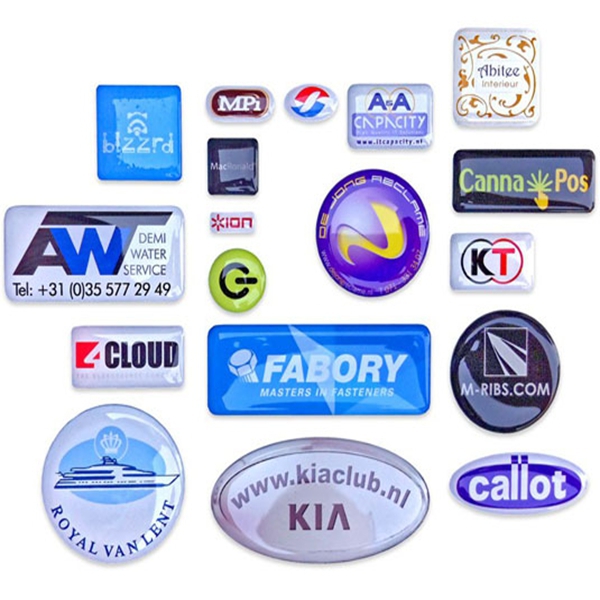

Product photos:
