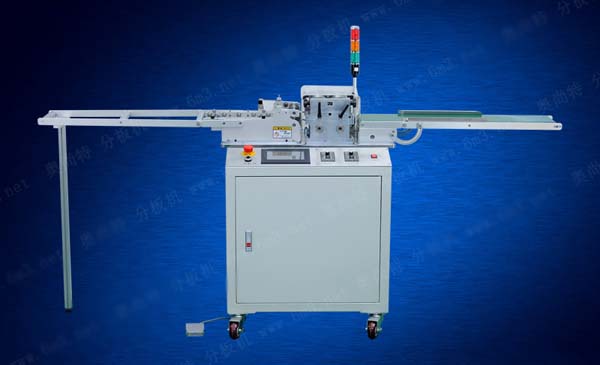

V cut pcb cutting machine for cutting many pcbs at same time

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-900

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

V-cut pcb depaneling Machine with mutiple blades


  • PCB Thinness: 0.2-5mm ( Multi-connected PCB )
  • Suitable PCb: Aluminum PCB, copper substrate, FR4, Glass fiber Board etc.

Key Features



1.Multiple blades to separete many pcbs at same time. High efficiency.

2.The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the  screen.

3.It can cut many pcbs while multiple sets of knives work at same time.

4.The blade flywheel is adjustable as a whole from 0 to 5mm

5.The distance between blade is regular as well, for PCB with width from 15mm to 20mm.

6.The blade is madevof imported SKH51 high speed steel material, which is durable.

7.Adjust the cutting speed with rotary knob.

8.Machine is for unlimited length of pcbs.

9. Avaibale PCB thickness: 0.2-5.0mm

10.With a conveyor belt line, the separated PCB can be send out directly to reduce pick-and-place machine.

Specification



Model No.

JX-900 PCB cutting/depaneling Machine





Dimension

2160*570*1050MM





Max. Cutting Length of PCB

No Limit





Cutting Speed

80, 120, 200, 400mm/s





Cutting Thinness

0.2-5mm





Voltage

230V/50Hz or 110V/60Hz





Weight

158KG





Power

120W
