ST-862D Hot Air Desoldering Rework Station

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: ST-862D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station
YouTube video: https://youtu.be/aVPqlvJ2Tpk

ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station
ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station
ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station



Product Description

Specifications:

Model

ST-862D

Power Supply

AC100V~240V 50Hz/60Hz

1000W

Temperature Range

 100°C~480°C/212°F~896°F

Hot Air Volume

1%-99%

Air Flow

 20~130L/min

Standby Heater Cooling Function

YES

Beeping Function

YES

Standby Function

YES

Timing Function

YES

Auto-sleep Function

YES

Shortcut Temperature/Air Flow

3 sets for quick selection

Temperature Calibration

±50°C/±90°F

Temperature Adjustment

10 digits (Coarse)/1 digit (Fine-tuning)

Air Flow Adjustment

2 digits (Coarse)/1 digit (Fine-tuning)

Working Conditions

Temperature 0-40°C, relative humidity <80%

Storage Conditions

Temperature -20-80°C, relative humidity <80%

Dimensions

21*18*15CM

Weight

3.5KG



Features:

Visualized control with LCD display screen.

Temperature unit °C/°F switching function.

Temperature locking, timed work function.

MCU controlled temperature calibration, compensation for constant working.

Strong air volume with brushless fan.

Easy to replace with pluggable heater.

Convertible with straight air and spiral air.

Auto-sleep function.



Packing List:

Hot Air Station

1 unit

Hot Air Gun

1 pcs

Hot Air Gun Holder

1 pcs

Nozzles

4 pcs

Nozzle Converter

1 pcs

Power Cord

1 pcs

Ground Wire

1 pcs

Manual

1 copy





Detailed Images

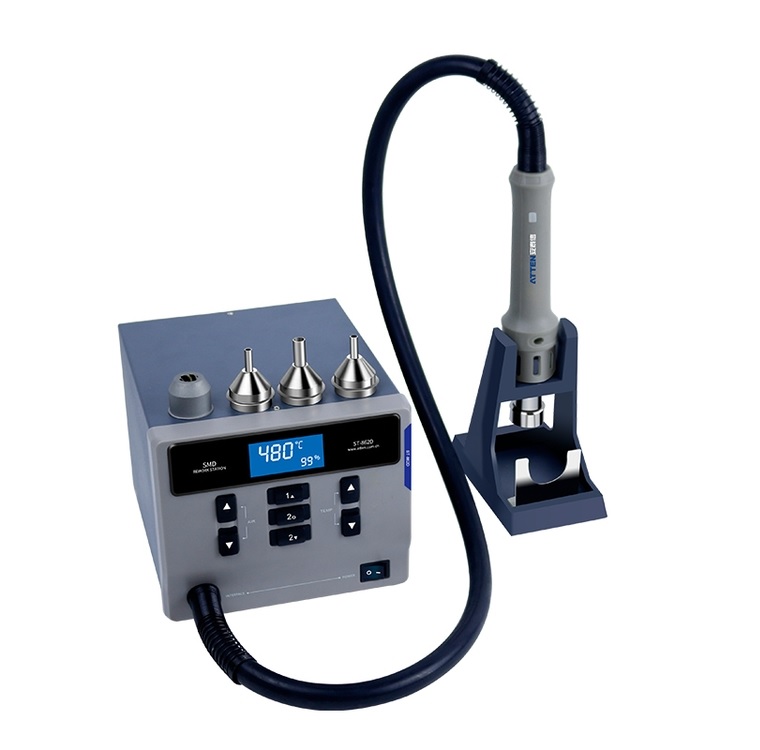

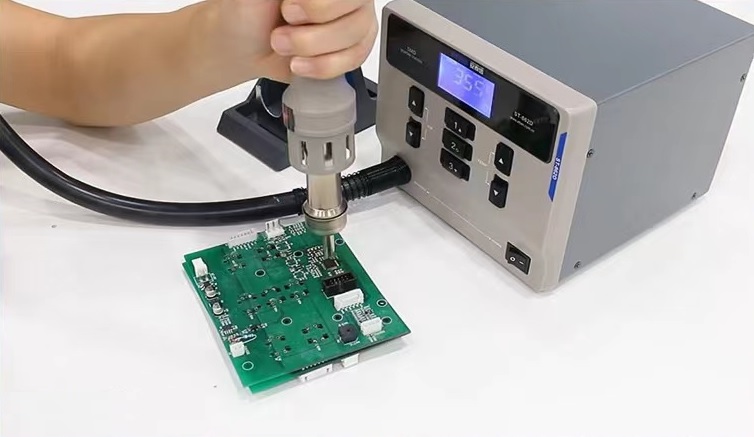

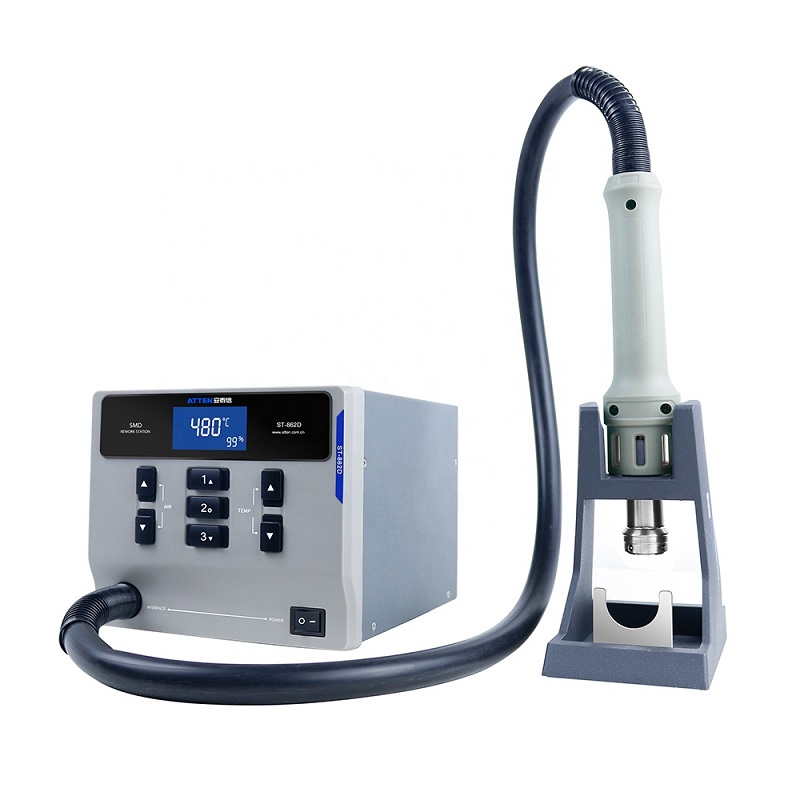

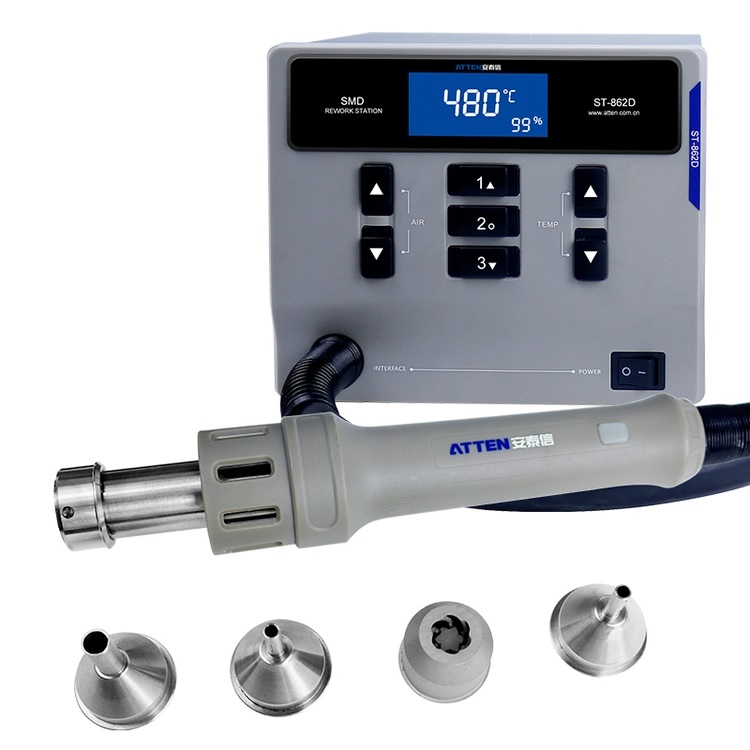

 ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station
ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station
ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station

ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station

Optional Nozzles

(If you need other nozzles, please contact us for more information)

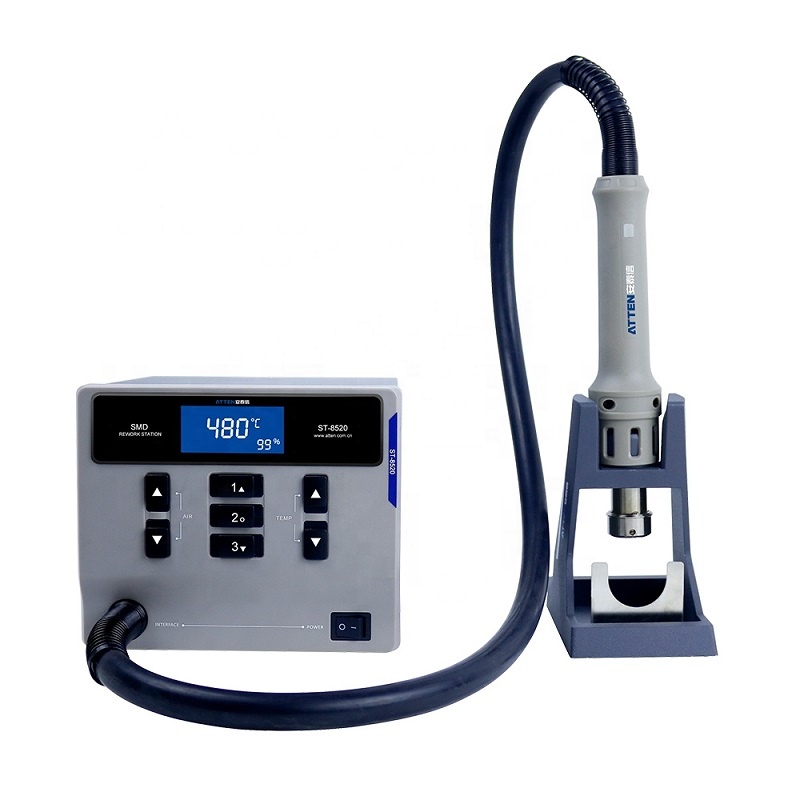

ATTEN ST-862D Low Noise Fast Heating-up Large Power 1000W Hot Air Repair System Desoldering Rework Station
