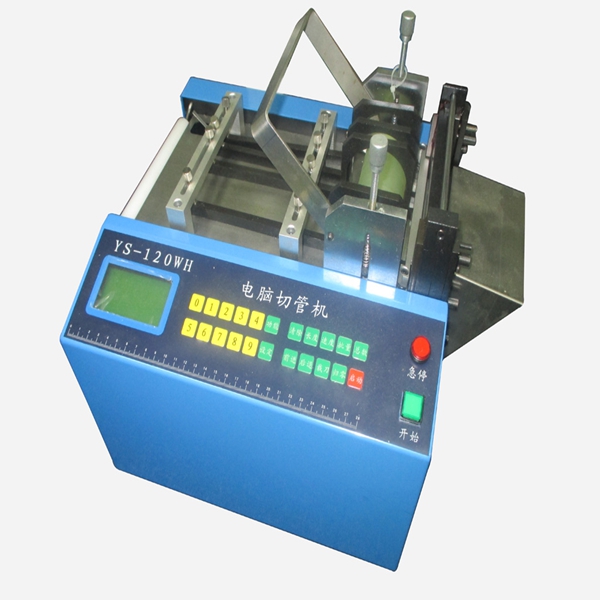

YS-120WH PVC Tube Cutting Machine Plastic Tube Cutter

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-120WH

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Product Description

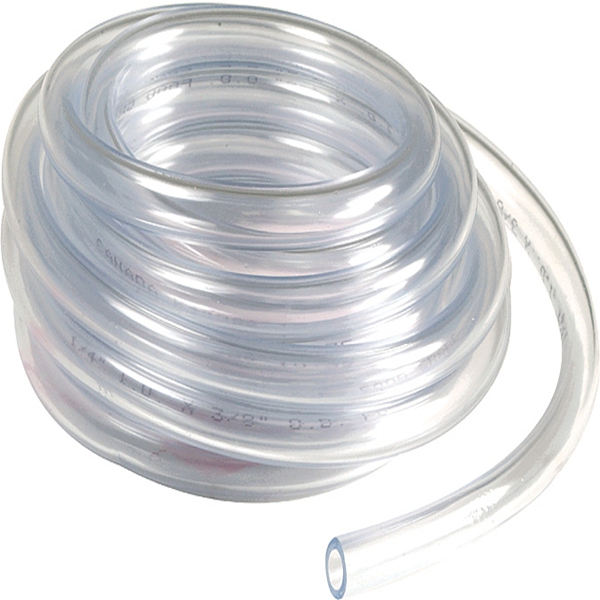

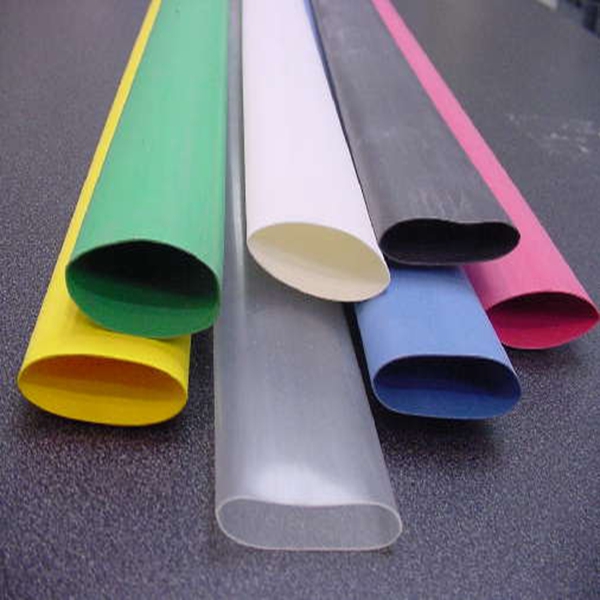

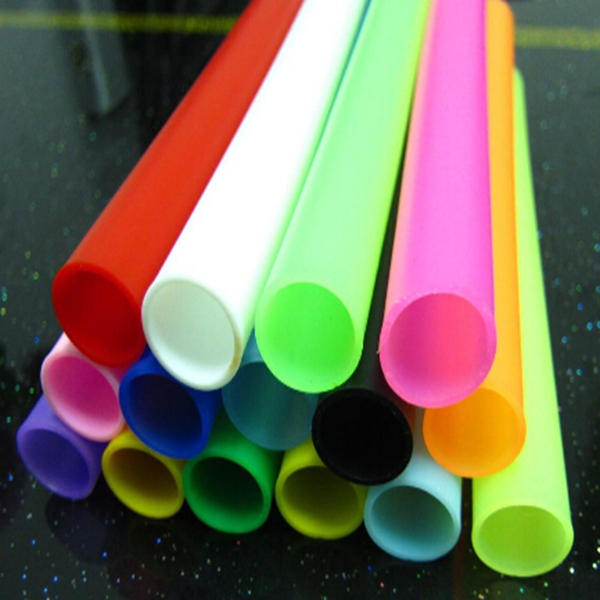

YS-120WH PVC Tube Cutting Machine Plastic Tube Cutter is used to cut big size tubes including PVC tube, silicone tube, rubber tube, heat shrink tube, latex tube, etc.

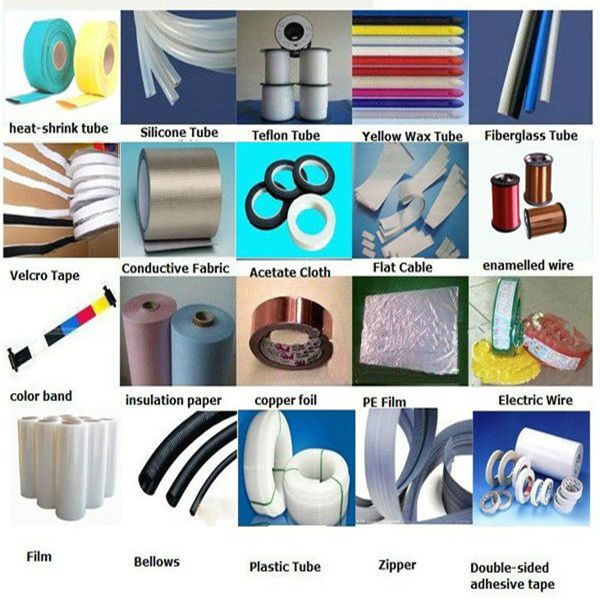

Machine can also cut velcro, elastic, ribbon, belt, strap, cable, ribbon cable, copper wire, copper foil, paper, pvc sleeve, heat shrink sleeve, Nickel strip, etc.
Blade length(cut width): 120MM
Cut length: 1-9999MM
Tube diameter: 1-22MM
English instructions and display, easy to operate.
CE approved.

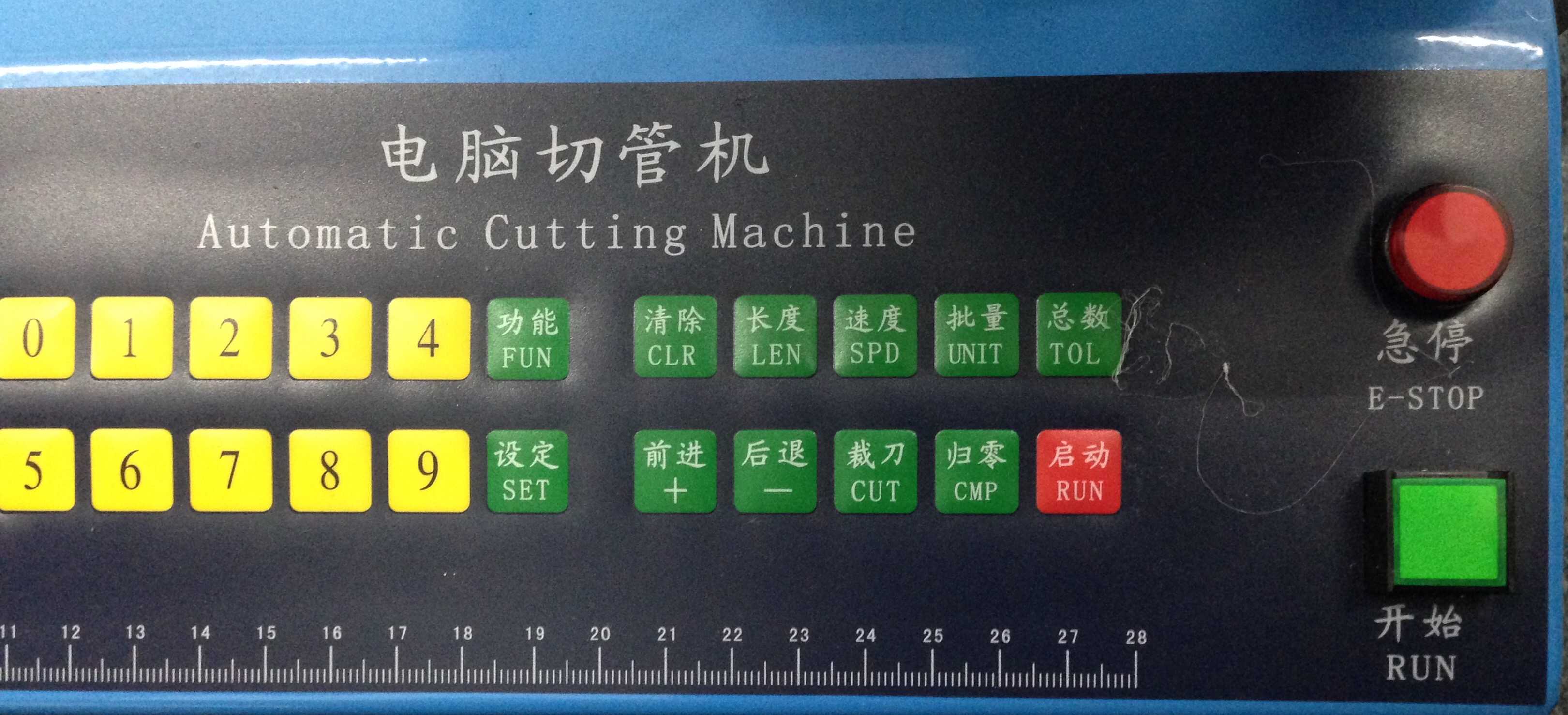

New English Panel


Parameters

Product Name YS-120WH PVC Tube Cutting Machine PVC Tube Cutter
Model YS-120WH
Power Supply 220V/110V 50HZ/60HZ
500Watt
Suitable Cutting Materials PVC tube, silicone tube, rubber tube, heat shrink tube, latex tube, etc.
velcro, elastic, ribbon, belt, strap, cable, ribbon cable, copper wire, copper foil, paper,
pvc sleeve, heat shrink sleeve, Nickel strip, etc.
Blade Length=Cut Width 120MM
Tube Diameter 1-22MM
Cut Length 1-9999MM
Cut Speed It depends on cut length. 100-120pcs/min for 50mm cut length
Weight 35KG (portable)
Dimensions 56CMx44CMx50CM
Warranty One year warranty and lifelong service
Certificate CE




















Features
-Simple Operation: English instructions and display. English manual.
-Programmable: After setting cut length, cut quantity and cut speed, machine will start & stop cutting automatically
-Multi-purpose: suitable to cut various materials including various soft tubes, sleeve, sheet, film, foil, webbing, wire, etc.
-Optional: Hot knife cutting to seal cutting edge. Electric sensor for accurate cutting sticker/label.
-Portable: small in size and light in weight
-Guarantee: over 10 years' production and sales experience. Machine quality and sales service & technical support have gained good comments.
-Ample supply and prompt delivery




Contact us for video, datasheet and more information of
YS-120WH PVC Tube Cutting Machine PVC Tube Cutter
