JX-782 Hot Blade Webbing Strap Cutting Machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-782

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description
JX-782 Hot Blade Webbing Strap Cutting Machine
Hot Cutting And Sealing

Usage:
Hot tape cutting machine for kinds Nylon tape, Polyester webbing, braided tape, Nylon zipper,   luggage belt.
Hot blade can cut webbing/tape and seal the end to avoid fraying.


Specification

Model: JX-782 Automatic Hot Blade Webbing Tape Cutting Machine

1.Easy Operation, Automatically cutting after setting Cut-length and Cut-Qty.
2.High efficiency. 100-120 Cuts/minute(50mm length)
3.Safe and Stable. Automatically Stop when finish cutting or material runs out.
4.Blade type: Hot Blade
5. Blade length: 140mm
6. Max temperature: 500 degrees, adjustable
7.Cut length:1-9999mm
8. Power: Motor 90W  Heater 800W
9. Package size and Weight: L490xW530xH365mm  35KG
10.Suitable material: For nylon and polyester strap, rope, nylon zipper, luggage belt,etc


Features

-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: For kinds of nylon/polyester/braide tape and webbing, which needs hot blade cut to seal the end and to avoid the end fraying.

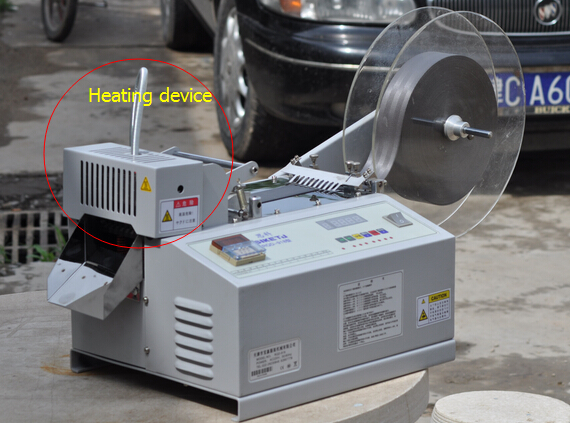

Pictures of hot blade cutting machine
