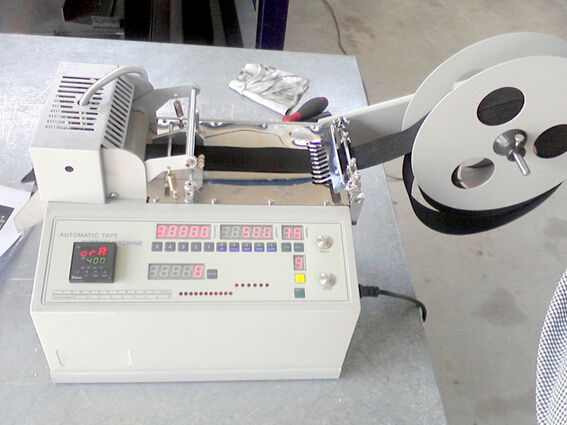

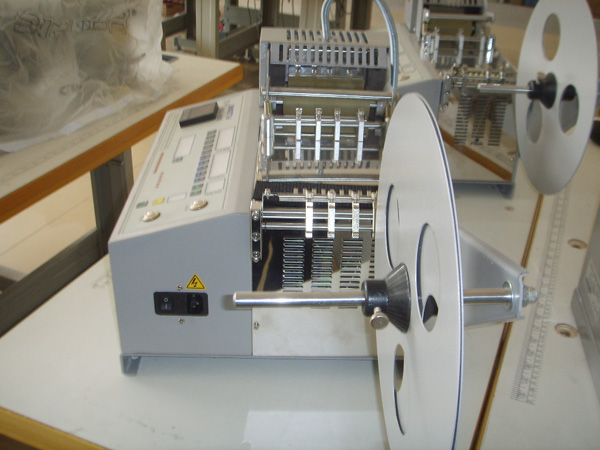

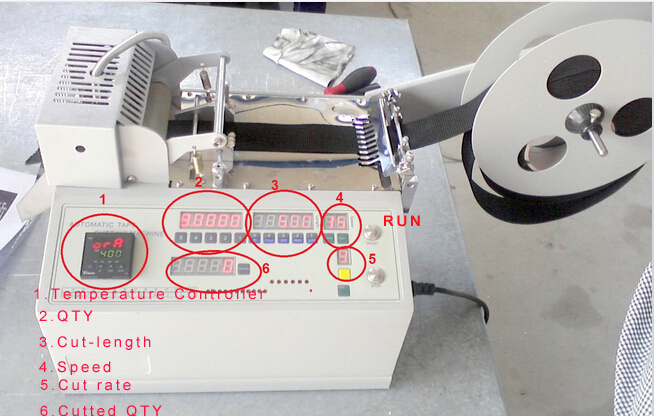

Hot Knife Cutting Nylon/Polyester Webbing Tape Machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-980

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description
Hot Knife Cutting Nylon/Polyester Webbing Tape Machine

Usage:
Hot tape cutting machine for kinds Nylon tape/rope, Polyester webbing, braided tape, Nylon zipper, Luggage belt etc
Hot blade can hot cut and seal the end to avoid fraying.

Specification
-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: For kinds of nylon/polyester/braided tape and webbing, which needs hot blade cut to seal the end and to avoid the end fraying.

Parameters
Model: JX-980 Hot cutting machine
Max tape width: 110mm
Cut length:1-9999mm
Power: Motor 60W  Heater:600W
Max temperature:500 degrees, adjustable
Package size:L380xW320xH300mm(25KG)
Tape cutting speed:100-120 cuts/minute(50mm)
Blade type: Hot blade
Usage: Hot cut and hot sealing for nylong/polyester/braided tape/rope,etc
