SMD Components/Parts Counter

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-801

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

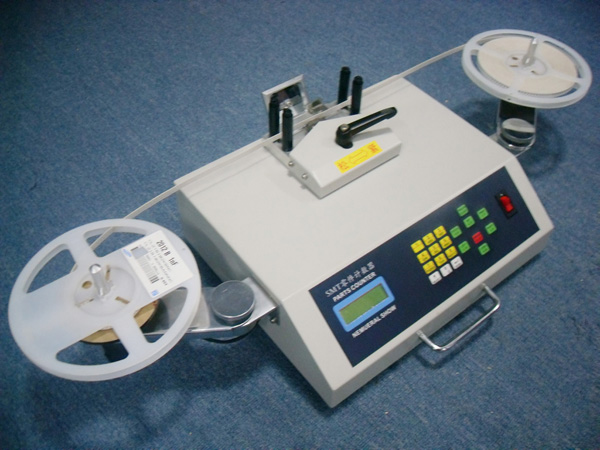

SMD Components Counter/SMD Parts Counter/SMD Chip Counter

YS-801 can not detect missing components
YS-802 can detect missing components

Works with all tape widths, thicknesses and component types and pitches
For stock management and job setup
No expensive bench top counter
SMD Component Counter works in a simple way by counting the holes on the tape.

It can operate in two different ways:

  • Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.
  • Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.

Overview:

Fast, error-free SMD counters, can count 5000pcs components in 30 seconds.Optional  Models include reel counters with barcode scanner and label printer that identify and record quantity and date information.

Optional  pocket-Check feature alerts operator to missing components.



 Prevent a stock shortage and line-down situation by using  Component Counter to verify exact stock quantities of all your reeled components.

The  Component Counter allows you to accurately count taped components in an effective and efficient manner without inducing damage to the components or carrier tape. Counting can also be performed in both winding directions.

In addition to its primary function as a component counter, the  can also be simultaneously used to assist with the visual inspection of the components in tape and the quality of the tape seal if desired while winding the tape from reel to reel.


Features

  • Full automactic counter, high accuracy, no error.
  • No risk of damaging the tapes, special design to prevent SMD reel from dropping.
  • Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.
  • The counter use drafting LCD screen, easy operation, full English display.
  • Use patent reflector,humanized operation platform.
  • Optional bar scanner and code printer, convenient for component management.
  • Optical sensor can detect empty components. Motor will stop working when detected leak.
Parameters

Voltage

 AC110V/220V, 50/60Hz(convertible)

Capability

 5000 pcs /30s

 Power consumption

 30W(2 Motors)

 Counting volume

  -99999 ~ 99999pcs

 Size

 L470*W300*H180mm

 Net Weight

 10kg

 Reel Diameter

 Suitable for SMD Reel with any diameter

 Reel Interval Distance

 2,4,8,10,12,16,24,32,44,56mm

Reel Width

 8,12,16,24,32,44,56mm
