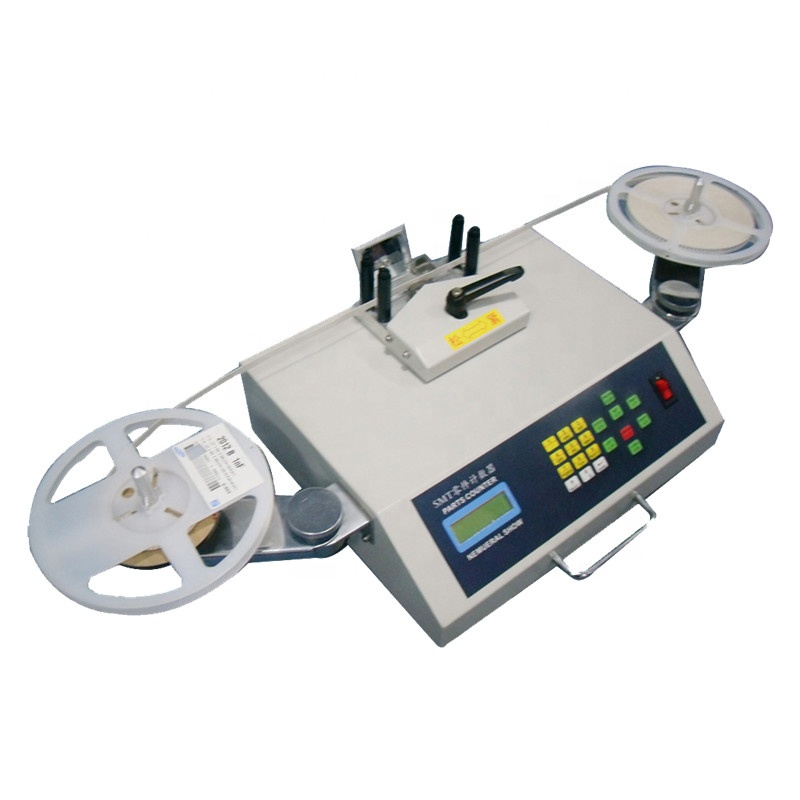

YS-802 reel to reel SMD component counter SMT parts counting

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-802

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description


SMD components counter, Components counter for SMD/SMT

YS-801 can not detect empty components
YS-802 can detect empty components  with optical fiber sensor.


Works with all tape widths, thicknesses and component types and pitches
For stock management and job setup
No expensive bench top counter

SMD Component Counter works in a simple way by counting the holes on the tape.

Parameters


Voltage

 AC110V/220V, 50/60Hz(convertible)

Capability

 5000 pcs /30s

 Power consumption

 30W(2 Motors)

 Counting volume

  -99999 ~ 99999pcs

 Size

 L470*W300*H180mm

 Net Weight

 10kg

 Reel Diameter

 Suitable for SMD Reel with any diameter

 Reel Interval Distance

 2,4,8,10,12,16,24,32,44,56mm

Reel Width

 8,12,16,24,32,44,56mm


Features


1.Full automactic counter, high accuracy, no error.



2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.



3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.



4.The counter use drafting LCD screen, easy operation, full English display.



5.Use patent reflector,humanized operation platform.



6.Optional bar scanner and code printer, convenient for component management.

7. English panel and user manual, easy operation and use-friendly interface.

8. Optical fiber sensor for detecting empty components.

YS-802




YS-802



Packaged by carton box with foam
