Detailed Product Description

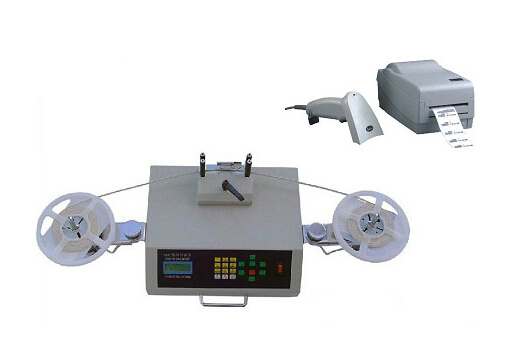

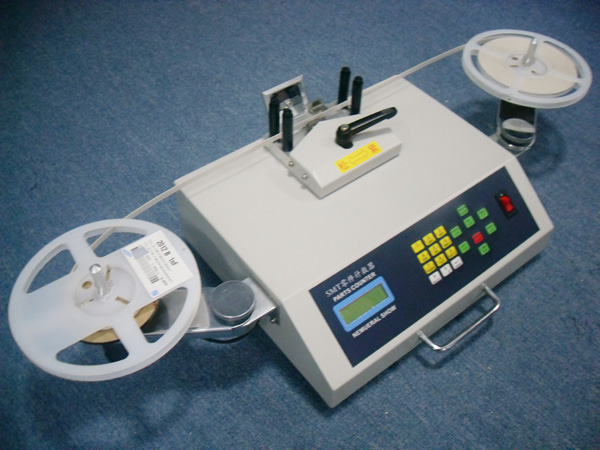

SMD counter with printer and scanner
YS-802 can detect empty/missing components, YS-801 can not
It can operate in two different ways:
Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.
Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.
Prevent a stock shortage and line-down situation by using Component Counter to verify exact stock quantities of all your reeled components.
The Component Counter allows you to accurately count taped components in an effective and efficient manner without inducing damage to the components or carrier tape. Counting can also be performed in both winding directions.
In addition to its primary function as a component counter, the can also be simultaneously used to assist with the visual inspection of the components in tape and the quality of the tape seal if desired while winding the tape from reel to reel.
Parameters
|
Voltage
|
AC110V/220V, 50/60Hz(convertible)
|
|
Capability
|
5000 pcs /30s
|
|
Power consumption
|
30W(2 Motors)
|
|
Counting volume
|
-99999 ~ 99999pcs
|
|
Size
|
L470*W300*H180mm
|
|
Net Weight
|
10kg
|
|
Reel Diameter
|
Suitable for SMD Reel with any diameter
|
|
Reel Interval Distance
|
2,4,8,10,12,16,24,32,44,56mm
|
|
Reel Width
|
8,12,16,24,32,44,56mm
|
Features
1.Full automactic counter, high accuracy, no error.
2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.
3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.
4.The counter use drafting LCD screen, easy operation, full English display.
5.Use patent reflector,humanized operation platform.
6.Optional bar scanner and code printer, convenient for component management.
7. Optical sensor can detect empty components. Motor will stop working when detected leak.
YS-801, Can not detect empty components

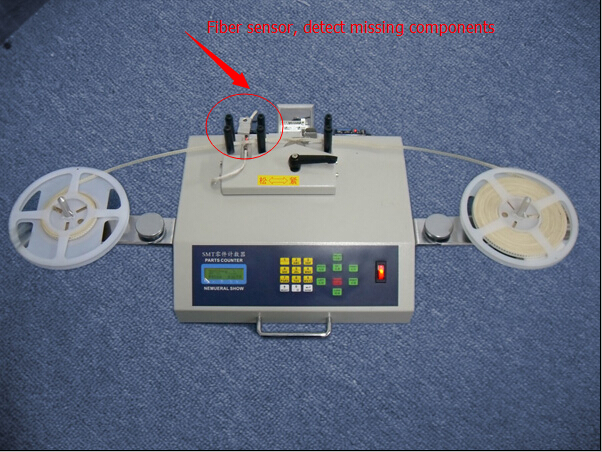

YS-802 can detect empty components with optical fiber sensor

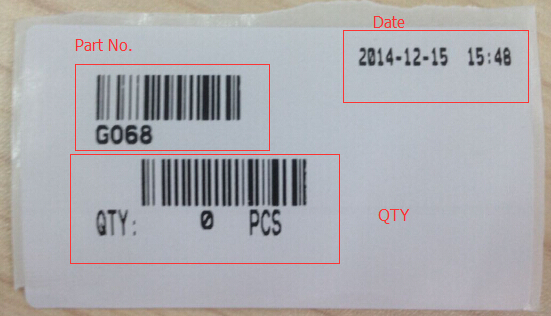

Printed bar code. Also we can customize as per customers' needs
